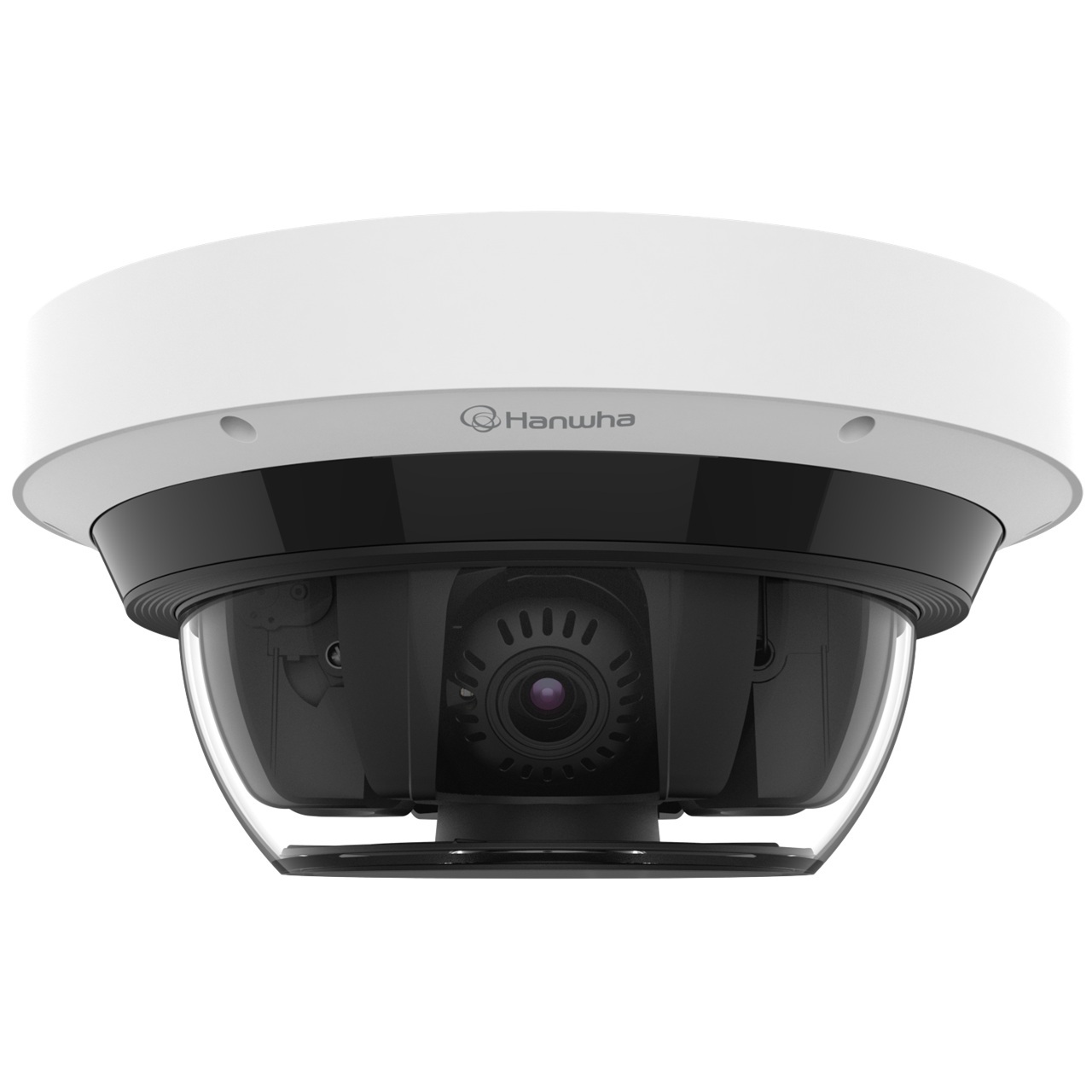

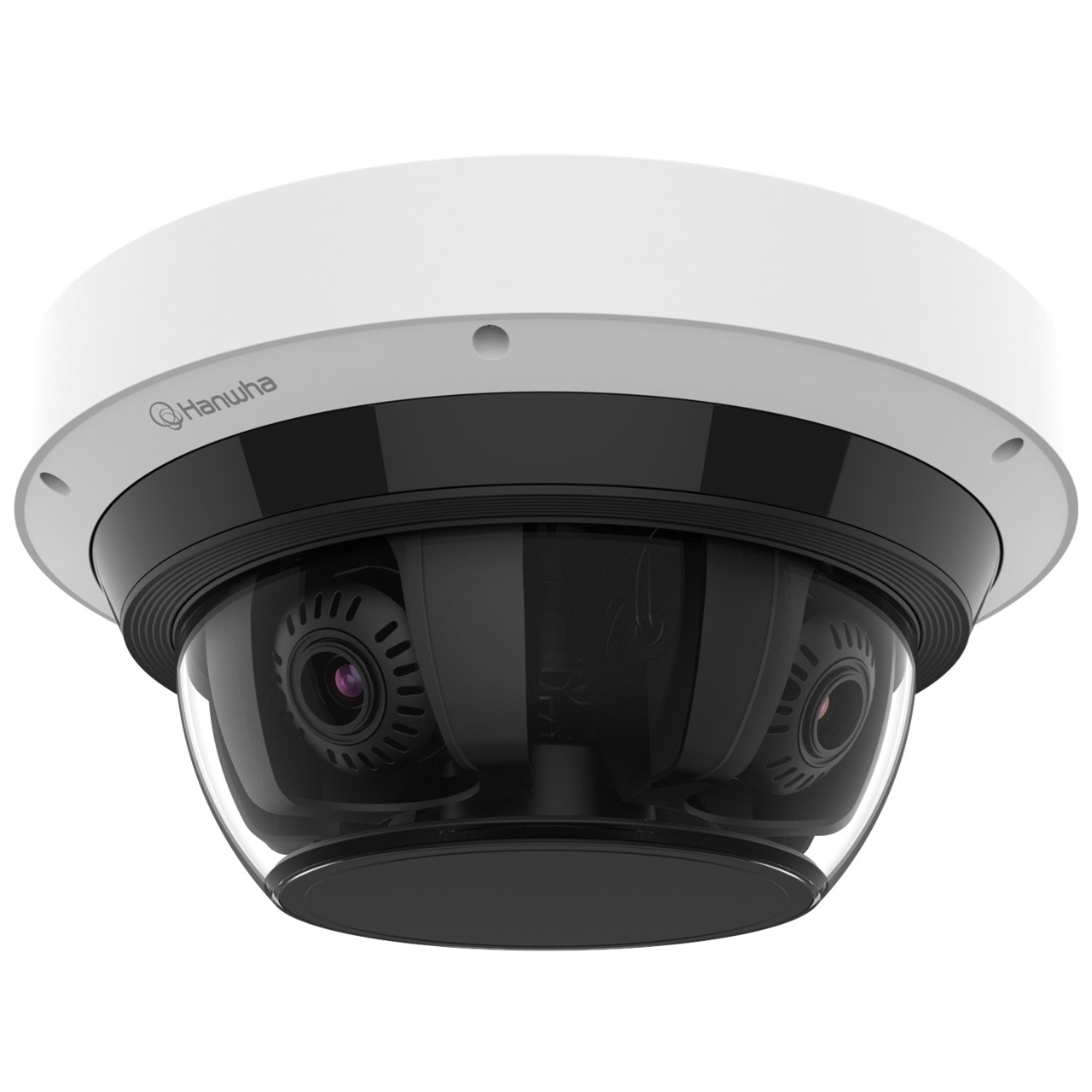

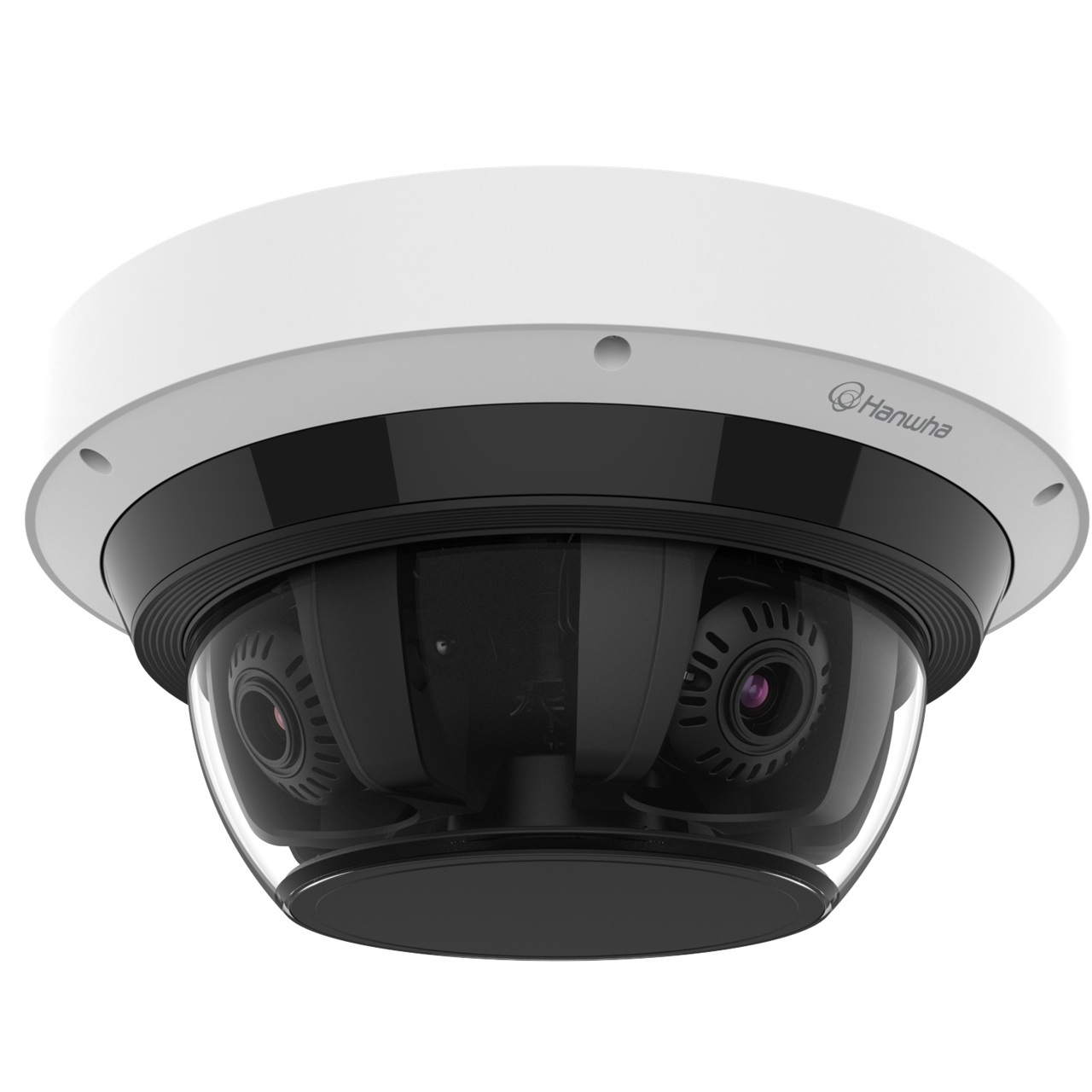

PNM-C16083RQZ Hanwha Vision 3.2-10.2mm Motorized 30FPS @ 4MP Indoor/Outdoor IR Day/Night WDR Multi-directional Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8"" CMOS x 4CH
• Resolution - 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps MJPEG: Max. 30fps(@4MP Max. 5fps)
• Min. Illumination - Color: 0.1Lux(F1.6, 1/30sec, 30IRE) BW: 0.01Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)

Lens

• Focal Length (Zoom Ratio) - 3.2~10.2mm(3.2x) motorized varifocal
• Max. Aperture Ratio - F1.6(Wide)~F3.1(Tele)
• Angular Field of View - H: 93°(Wide)~29°(Tele) V: 53°(Wide)~17°(Tele) D: 111°(Wide)~34°(Tele)
• Min. Object Distance - 1.2m(3.93ft)
• Focus Control - Simple focus
• Lens Type - P-Iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - Remote adjustment(Max. 200cycles) 0°~360° / 30°~90° / 0°~90°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 6ea, 4point quadrangle zones - Color: Gray/Black/White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / prefer shutter / Anti flicker(1/5~1/12,000sec) Prefer shutter control(Based on AI engine)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°) - each CH separately
• Analytics - Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear) * Audio detection, Sound classification(with NW I/O box SPM-4210)
• Alarm I/O - 2 configurable I/O ports * Support Alarm via optional SPM-4210 I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Tampering
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - MQTT: publication
• Audio In - * Support Audio via optional SPM-4210 I/O box
• Audio Out - * Support Audio via optional SPM-4210 I/O box
• Light Type - IR LED
• IR Light Viewable Length - WiseIR: PoE++ 20m(65.62ft) / PoE+ 15m(49.21ft)
• IR Wavelength - 850nm

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStream III
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(10 users) / Multicast Multiple streaming(Up to 3 profiles per CH)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/T/G/M SUNAPI(HTTP API) Hanwha vision open platform

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - TPM, SDcard partition encrypt
• Security Certificate - TPM with FIPS 140-2 level 2

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
• Memory - 8GB RAM, 8GB eMMC

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F~+131°F) / 0~100% RH(condensing) * Start up should be done at above -35°C Humidity control /w AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~90% RH
• EPA(Effective Projected Area) - 0.035㎡
• Certification - IP66, NEMA4X, IK10
• Input Voltage - Wisepower(PoE++(IEEE802.3bt type3, Class6) / PoE+(IEEE802.3at type2, Class4))
• Power Consumption - PoE++: Max 41.0W, Typical 22.0W PoE+: Max 25.5W, Typical 22.0W

Mechanical

• Color / Material - White / Aluminum + PC Bubble: Hard-coated dome
• RAL Code - RAL 9003
• Product Dimensions / Weight - ø312.7x145.9mm(ø12.31x5.74"") / 4400g(9.7lb)
• Compatible Conduit hole / Gangbox - 19.1mm(3/4"")(M25) Single, double, 4"" octagon, 4"" square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X

Compatible Models

• Hanging Adaptor - SBP-315HMW, SBP-317HMWP
• Ceiling Mount (Assy) - SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
• Ceiling Mount (Single Unit) - SBP-180CMB/140CMB, SBP-180CMS, SBP-900CMP/300CMP/150CMP, SBP-C15P, SBP-C15H
• Wall Mount - SBP-400WMW/250WMW, SBP-300WMW
• Wall Mount Adaptor - SBP-300BW1, SBP-115PFA
• Pole Mount - SBP-300PMW2
• Corner Mount - SBP-300KMW1, SBP-156KMW
• Parapet Mount - SBP-300LMW, SBP-156LMW1
• Cabinet - SBP-300NBW, SBP-150NBW
• Interface Box - SPM-4210
• Other Compatible Models - SBP-315C, SPO-8315

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 49.2m(161.40ft) / Tele: 200.5m(657.65ft)
• Observe (63PPM/ 19PPF) - Wide: 19.7m(64.56ft) / Tele: 80.2m(263.06ft)
• Recognize (125PPM/ 38PPF) - Wide: 9.8m(32.28ft) / Tele: 40.1m(131.53ft)
• Identify (250PPM/ 76PPF) - Wide: 4.9m(16.14ft) / Tele: 20.0m(65.76ft)

Ver

• Ver - 202412
