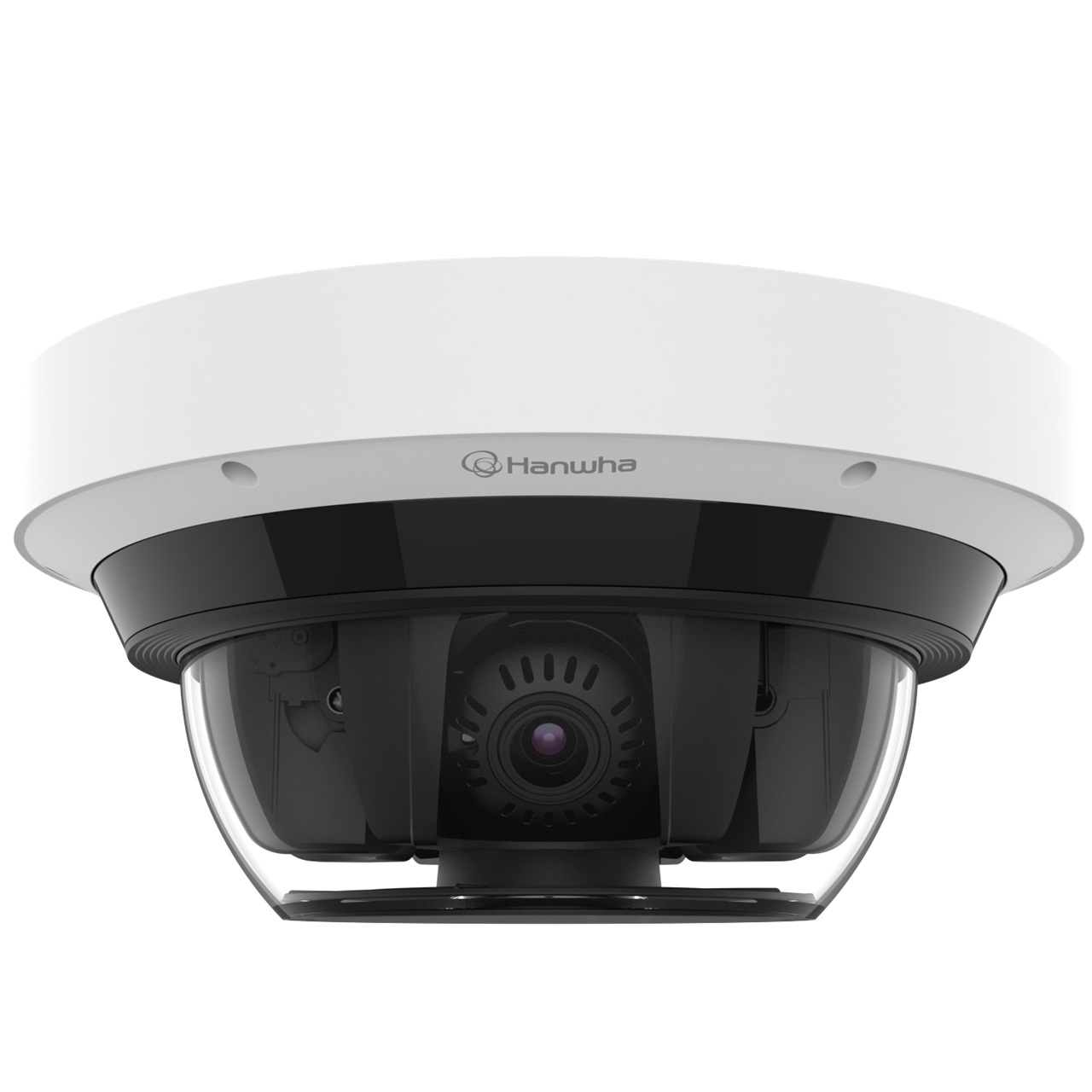

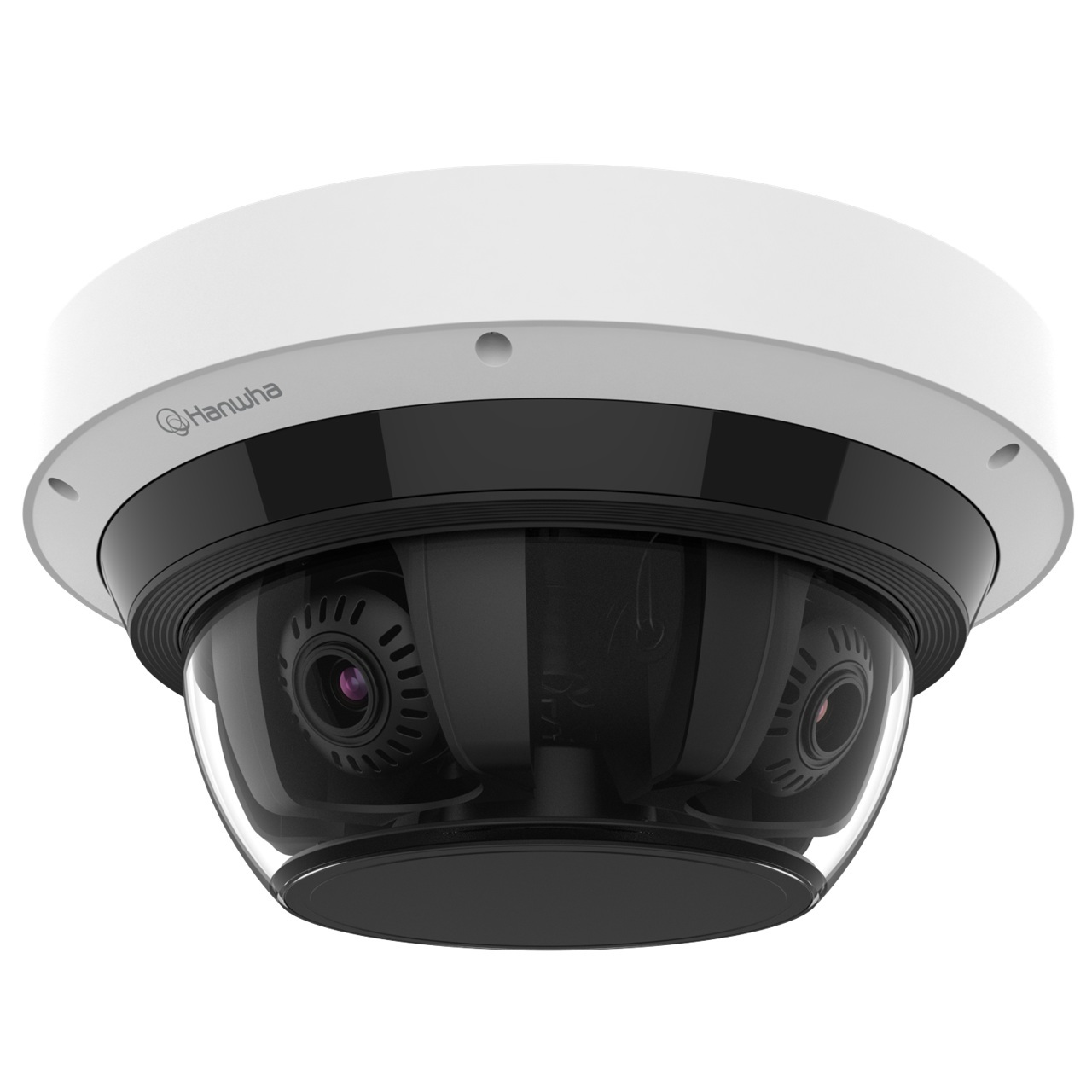

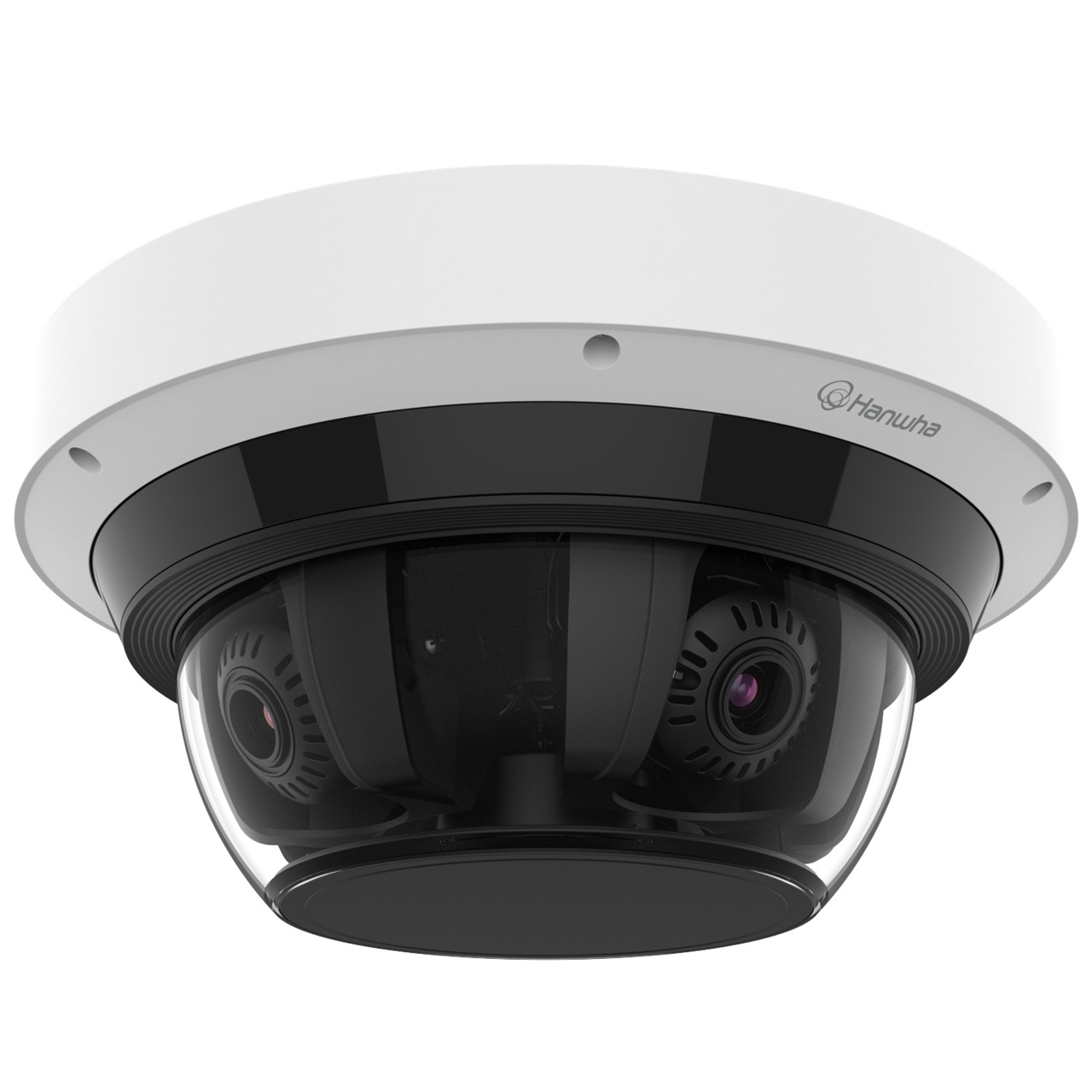

PNM-C32083RQZ Hanwha Vision 4.38-9.33mm Motorized 15FPS @ 8MP Indoor/Outdoor IR Day/Night WDR Multi-sensor Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - Size: 1/1.8", Type: CMOS
• Resolution - 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: 15fps/15fps(60Hz/50Hz); MJPEG: 15fps(@8MP Max. 5fps); Others: Max. 20fps when AI off(MJPEG@8MP Max. 5fps)
• Min. Illumination (Lux) - Color(1/30sec, 30IRE): 0.07, BW(1/30sec, 30IRE): 0.007

Lens

• Focal Length (Zoom Ratio) - 4.38~9.33, Optical: 2.1x
• Max. Aperture Ratio - Wide: 1.3, Tele: 2.15
• Angular Field of View - Horizontal: 113°~47°, Vertical: 58°~26°, Diagonal: 138°~54°
• Min. Object Distance - 1.3m(4.27ft)
• Focus Control - Simple focus
• Lens Type - P Iris

Pan / Tilt / Rotate

• Pan/Tilt/Rotate Range - Pan: 0°~360°, Tilt: 30°~90°, Rotate: 0°~90°, Others: Remote adjustment(Max. 200cycles)

Operational

• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Defog - Support
• Motion Detection - Quantity: 8ea, Shape: 8point Polygonal zones
• Privacy Masking - Quantity: 6ea, Shape: 4point Quadrangle zones, Color / Option: Gray, Black, White
• Gain Control - Low, Middle, High
• White Balance - ATW, AWC, Manual, Indoor, Outdoor
• LDC - Support
• Electronic Shutter - Mode: Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°) - Each channel separately
• Alarm Interface - In/Out: 2 configurable I/O ports; Others: Support extra alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Case tampering
• Alarm Events When Alarm Trigger Occurred - File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers,Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
• Audio In - Support via optional I/O box
• Audio Out - Support via optional I/O box
• Light Type - IR LED
• Light Viewable Length - IR: WiseIR PoE++ 25m(82.02ft /PoE+15m(49.21ft)
• IR Wavelength - 850nm

Analytics

• Classified Object Type - Person, Face, Vehicle, License plate
• Attributes - Person: Upper/Lower clothes color, Vehicle: Type(car, bus, truck, motorcycle, bicycle), Color
• Thumbnail - BestShot
• Analytics Events - Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Normal: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual, WiseStreamIII
• Bitrate Control - H.265/H.264: CBR or VBR, MJPEG: VBR
• Streaming - Unicast Up to 10 users, Multicast: Support, Multiple streaming Up to 3 profiles
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF: S, G, T, M, Others: SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

• OS / Firmware Protect - Encrypted firmware, Secure boot, Signed firmware
• User authentication - Digest Authentication
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA
• Secure Storage - TPM(Trusted platform module), SDcard partition encrypt(AES-256)
• Security Certificate - TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)

General

• Memory - 8GB RAM, Flash: 8GB
• Edge Storage - Micro SD/SDHC/SDXC: Max. 512GB x 2slot(Total 1TB)
• Edge Storage(OnCloud) - Micro SD/SDHC/SDXC: Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording

Environmental & Electrical

• Operating Condition - Temperature: -40°C~+55°C(-40°F~+131°F), Humidity: 0~100% RH(condensing), Others: Start up should be done at above -20°C, Humidity control with AIR vent
• Storage Condition - Temperature: -50°C~+60°C(-58°F~+140°F), Humidity: 0~90% RH(non-condensing)
• EPA(Effective Projected Area) - 0.035㎡
• Input Voltage - PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)
• Power Consumption - PoE: Max. 41W, typical 22W, Others: PoE+: Max. 25.5W, typical 22W

Mechanical

• Color - White
• Material - Aluminum, Plastic, Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions - ø312.7x145.9mm(ø12.31x5.74")
• Product Weight - 4,400g(9.7lb)
• Compatible Conduit Hole - 19.1mm(3/4")(M25)
• Compatible Gang Box - Single, Double, 4" Octagon, Square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA- EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
• Environment - IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 Standard)

• Detect (25PPM/ 8PPF) - Wide: 50.8m(166.77ft) / Tele: 176.6m(579.49ft)
• Observe (63PPM/ 19PPF) - Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
• Recognize (125PPM/ 38PPF) - Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
• Identify (250PPM/ 76PPF) - Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)
