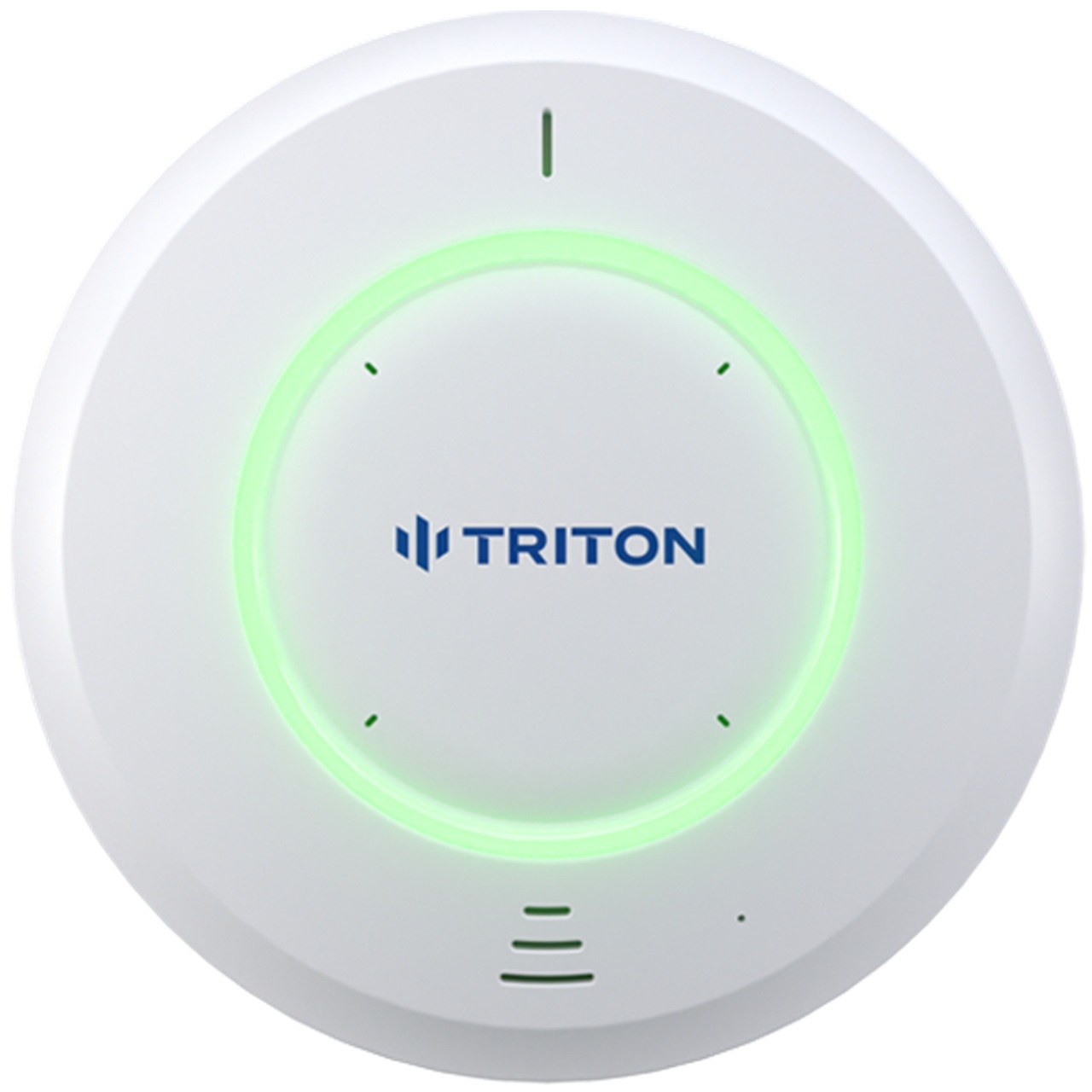

TRTN-UA001 Hanwha Vision POE+ Powered Vape and Smart Safety Sensor

Specifications

General

• Operating Temperature / Humidity - 32°F~+104°F (0°C~+40°C) / 0~90% RH (Non-Condensing)
• Mounting Options - Surface Mount (recommended), Wall Mount via Stud, Pole Mount
• Power Supply - POE (IEEE 802.3at Class 3 Compliance) input and output. Tether up to 4 devices together (optional). Conduit Adapter (optional).
• Certification - FCC, CE, RoHS, IK8, UKCA

Network

• Ethernet In - RJ-45 (10/100 Base-T) PoE (IEEE 802.3at Class 3 Compliance) (48v 5-8w)
• Ethernet Out - RJ-45 (10/100 Base-T) IEEE 802.3at Class Compliance (Up to 4 Tethered Devices)
• Protocols - RTSP, IPV4 / V6, TCP / IP, HTTP, HTTPS, DHCP, Onvif
• Wireless - 2.4 GHZ IEEE 802_11 b/g/n/ac Wire-less
• Product Dimensions / Weight - Dimensions: 5.5" x 1.96" (140mm x 50mm) / Weight: 340g

Communication I/O

• Tritons PC Software - On-Premise management software to connect all Triton devices to a Single account and view and manage them individually
• Triton Cloud - Cloud adds multi-tenant access, SSO, Alerts, Bulk Setup, and advanced analytics from the Triton Hardware.
• Email - Sent via AWS API
• SMS Text Message - Sent via Twilio API
• Speaker - Ultra-loud speaker with pre-configured sounds and the options for users to upload Audio Files. The Speaker plays different audio files based on the event that is detected.
• Alert Light - Users can map how the light reacts to different event types
• Live Dashboard Stream - Live Dashboard Stream
• Relay - Supports relay input and output to interface with external hardware
• Integrations - ULTRA integrates with many 3rd party VMS, communications, and safety systems. Most popular include: Hanwha WAVE VMS, Milestone, Genetec, Raptor Technologies, i-Pro Video Insight, Axis Camera Station, Axis D4100, Arcules, OpenEye, ExacqVision, DW Spectrum, Nx Witness, Ganz CORTROL, VAST 2, EPIC System, IC Realtime, and Avigilon. Contact Triton for integration requests and a full list of integrations

TRTN-UA001 Specifications PDF
