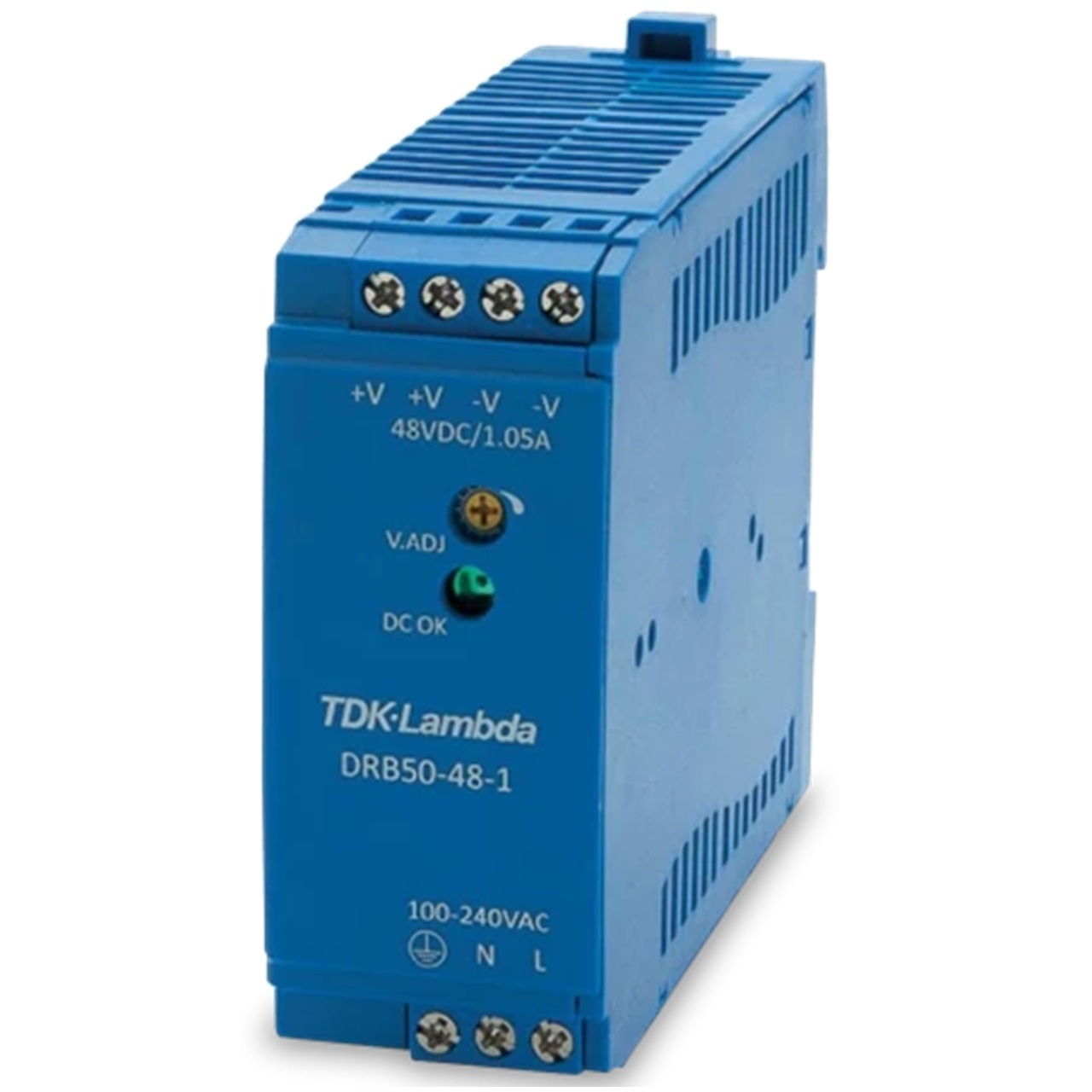

HV-DRB50-48-1 Hanwha Vision DIN Rail Power Supply 50W DC

Specifications

• Input Voltage range - 85 - 264VAC, 120 - 373VDC* (Withstands 300VAC for 5 seconds)
• Input Frequency - 47 - 63Hz
• Inrush Current (typ) (Cold Start) - 35A
• Power Factor (110/230VAC) Meets EN61000-3-2 - 0.6/0.5
• Input Current (110/230VAC) - 0.9/0.55
• Line & Load Regulation - 480mV
• Ripple & Noise - 40mV
• Overcurrent Protection - Hiccup with auto recovery
• Overvoltage Protection - 53.76 - 68.16V **
• Hold Up Time (230VAC input) - > 20ms
• Efficiency - 90 / 91
• No Load Power Draw - <0.3W
• LED Indicator - Green LED indicates DC is OK
• Operating Temperature (1) - -20 to +70°C
• Storage Temperature - -40 to +85°C
• Operating Humidity (non condensing) - 5 - 95%RH
• Parallel Operation - Not available
• Series Operation - Possible
• Cooling - Convection
• Withstand Voltage (For 1 minute) - Input to Output 3kVAC, Input to GND 1.5kVAC, Output to GND 500VAC
• Isolation Resistance - >100MΩ at 25°C, 70%RH & 500VDC
• Vibration (Non operating) - 10-55Hz (sweep for 1 min); 19.6m/s2 (2G) Constant; X,Y,Z each 1 hour
• Shock - 294m/s (30G) 11ms half sine
• Safety Agency Certifications - UL508 Listed, UL60950-1, CSA22.2 No60950-1, EN60950-1, CE Mark
• Conducted & Radiated EMI - EN55022-B Radiated & Conducted
• Immunity - EN61000-4-2 (lvl 4) , -3 (lvl 3), -4 (lvl 4) -5 (norm mode lvl 3, com mode lvl 4), -6 (lvl 3), -8 (lvl 4), -11 (class 3)
• Weight - 175
• Size (WxHxD) - 30 x 75 x 90 mm 1.18 x 2.95 x 3.54 in
• Case material - Flame Retardant Polycarbonate (UL94 V-0)
