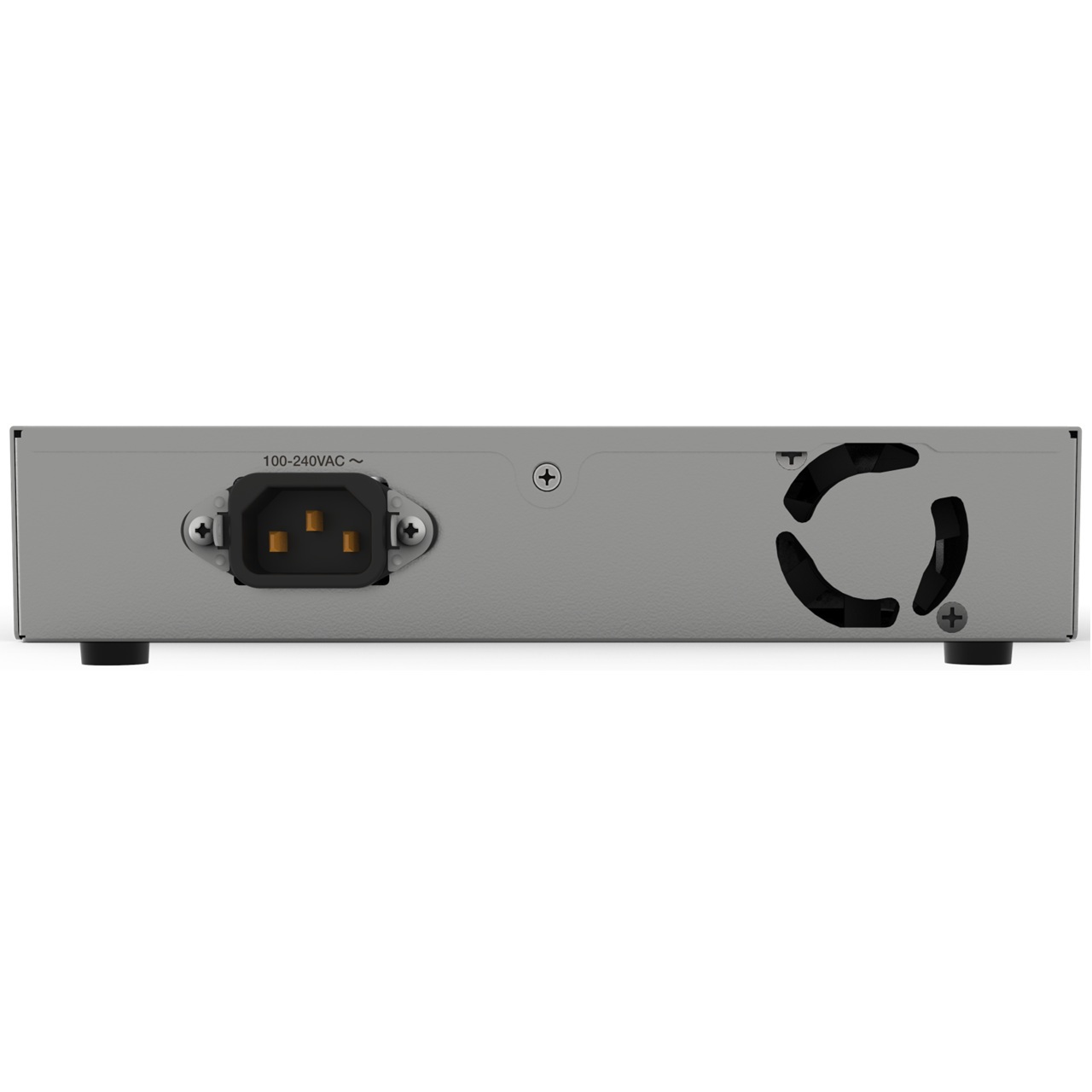

HV-GS970M/10PS-R-10 Hanwha Vision L3 Switch with 8 x 10/100/1000T PoE Ports and 2 x 100/1000X SFP Ports

SKU: HV-GS970M/10PS-R-10

8 x Gigabit Ethernet PoE+ 124W (L)

Features:

  • AT 8 x Gigabit Ethernet managed switch, 2 x SFP Uplink PoE+ 124W total PoE budget.
  • Optimized to use with Hanwha network camera products.
More details...
MPN: HV-GS970M/10PS-R-10
EAN: 849688024386
MSRP Price: $1,190.00
Web Price$1,190.00
Add to List
DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.


Product Details

Specifications

Product

  • 10/100/1000T (RJ-45)Copper Ports - 8
  • 100/1000X SFP Ports - 2
  • Total Ports - 10
  • POE+ Enabled Ports - 8
  • Switching Fabric - 20Gbps
  • Forwarding Rate - 14.9Mpps

Power Characteristics

Non PoE Load

  • Max Power Consumption - 16W
  • Max Heat Dissipation - 55 BTU/hr
  • Noise - 33dBA

Full PoE+ Load

  • Max Power Consumption - 180W
  • Max Heat Dissipation - 126 BTU/hr
  • Noise - 41 dBA
  • Max Poe Power - 124W
  • Max Poe Ports At 15W Per Port - 8
  • Max Poe+ Ports At 30W Per Port - 4

Physical Specifications

  • WidthxDepthxHeight - 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in)
  • Weight - 2.1 kg (4.6 lb)
  • Packaged Dimensions - 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in)
  • Weight - 3.45 kg (7.6 lb)

Latency (microseconds)

  • Port Speed 10MBPS - 55μs
  • Port Speed 100MBPS - 7.8μs
  • Port Speed 1GBPS - 3.4μs

HV-GS970M/10PS-R-10 Specifications PDF
