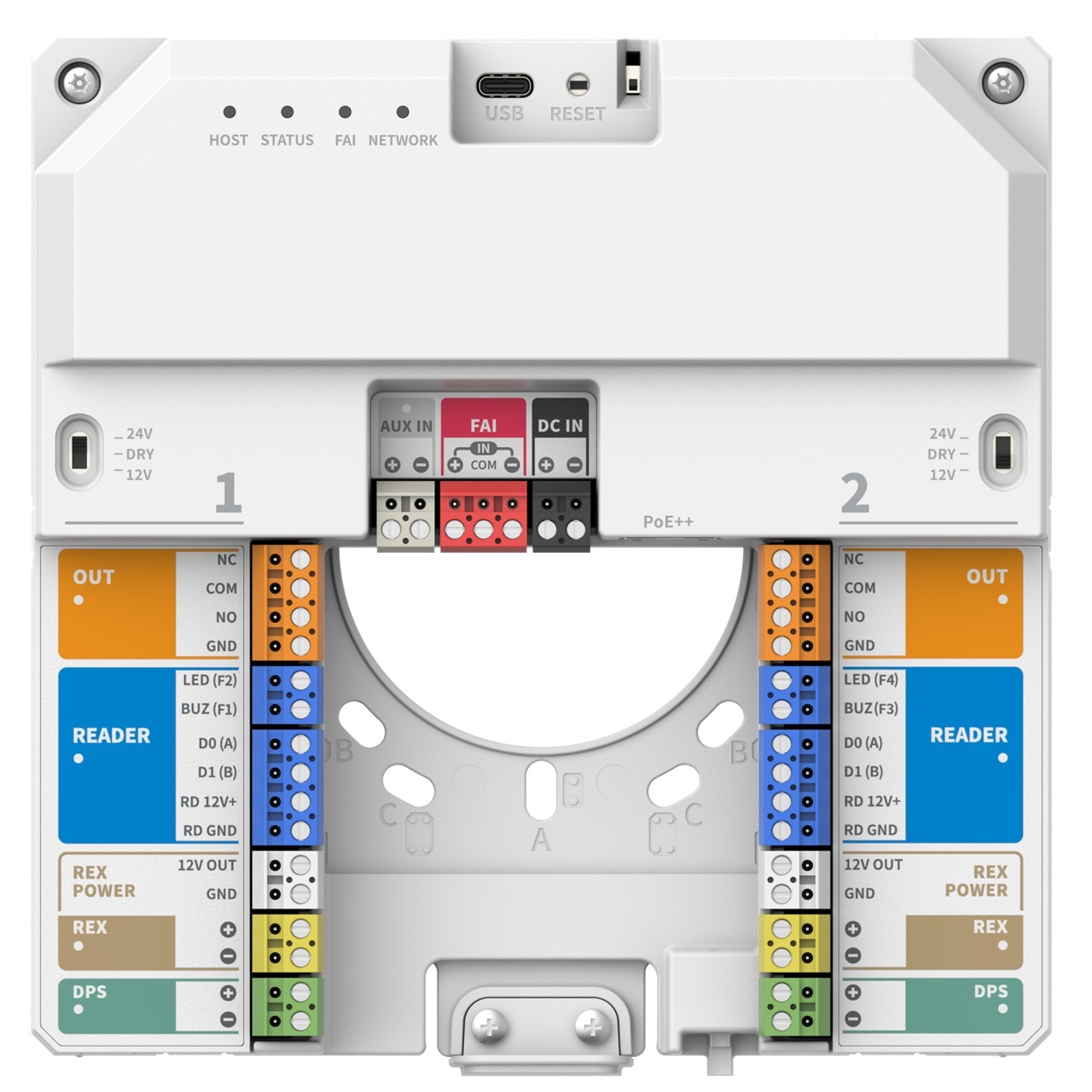

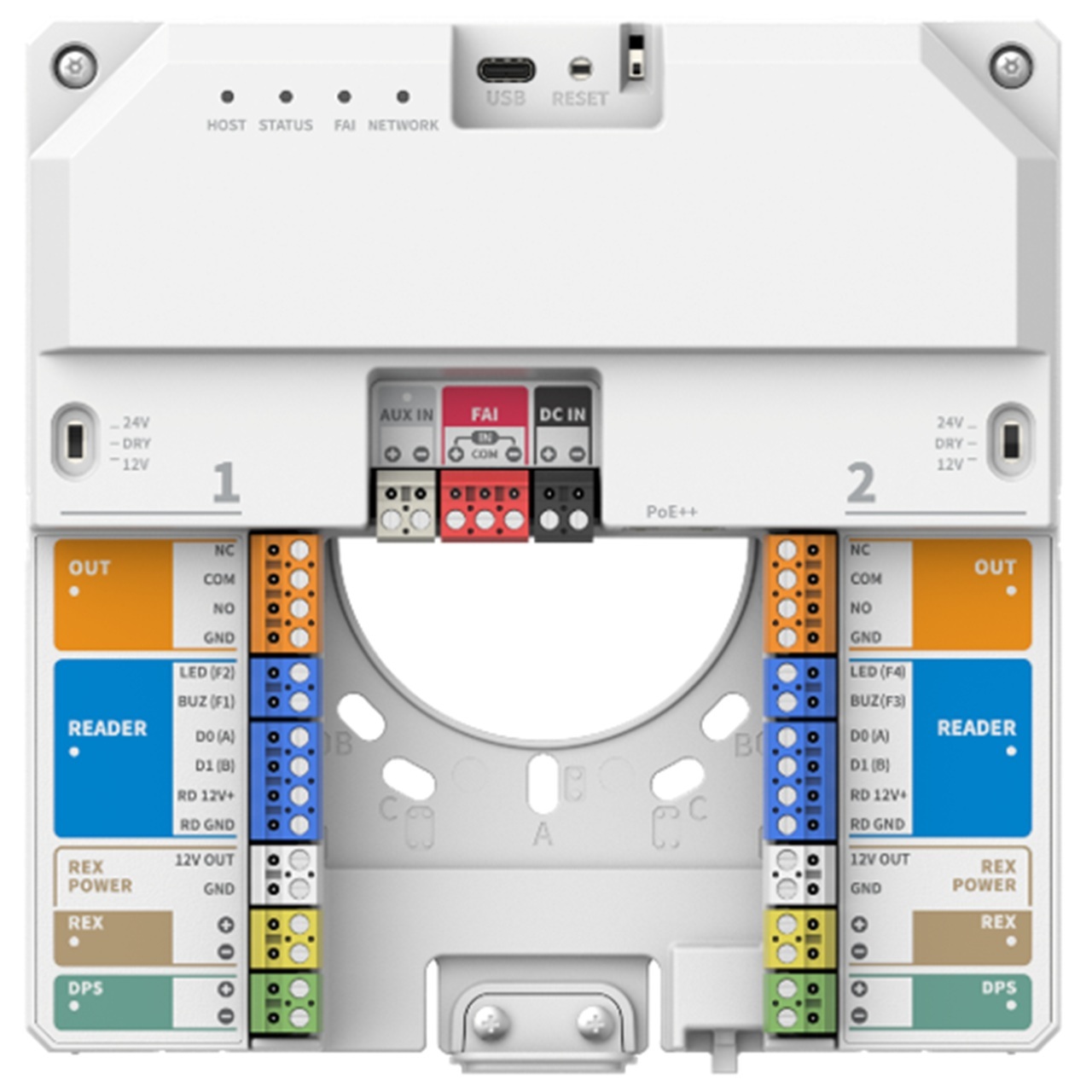

NHP-P200 Hanwha Vision IP Controller

Specifications

Access

• Doors - 2 Doors
• Credentials - 50,000
• Event History (offline event cache) - 250,000

Hardware

• Reader Ports - 2
• Reader Port Specs - Single Wiegand or (2) OSDP Readers per port
• Reader Port Power - 300mA@12VDC
• Reader Port Protocol Support - Wiegand, OSDP v2.2
• General Purpose Inputs - 5
• Input Specs - Supervised (1k/2kΩ)
• OSDP Flex Inputs - 4 (unsupervised)
• General Purpose Outputs - 2
• Wet Output Capabilities - Dry, 12VDC, 24VDC
• Output Specs - 2A@30vDC (Dry), 500mA@12VDC, 350mA@24VDC
• Dedicated Inputs - Case Tamper (built-in), Mount Tamper (built-in), Fire Alarm Input (FAI)
• REX Power Ports - 2
• REX Power Port Specs - 12VDC 100mA

Operational

• Host Communication Modes - Direct-to-Cloud, Standalone Mode (EntryGuard)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, NTP, HTTP, HTTPS, SSL/TLS, SMTP, ICMP, IGMP, SNMP v3(MIB-2), ARP, DDNS, DNS, UPnP, Bonjour, LLDP
• Application Programming Interface - ONVIF Profile A, ONVIF Profile C, SUNAPI (HTTP API), Hanwha Vision Open Platform (HVOP)

Security

• Network Security - HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP), SNMP v3, TLS 1.2/1.3
• OS/Firmware Protect - Firmware verification, Secure Boot
• Data Protection - Encryption at rest
• Device ID - Device certificate (Hanwha Vision Root CA)
• Security Certificate - TPM with FIPS 140-3 Level 3

Environmental & Electrical

• Operating Condition Temperature - -20°C~+60°C (-4°F~+140°F)
• Operating Condition Humidity - 20~85% RH (non-condensing)
• Storage Condition Temperature - -50°C~+55°C (-58°F~+131°F)
• Storage Condition Humidity - Less than 95% RH
• Input Voltage - 12VDC, 24VDC, PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)
• Power Consumption - PoE++: Max 780mA, 12VDC: Max 3.5A, 24VDC: Max 1.75A

Mechanical

• Color - White
• Material - Aluminum
• Product Dimensions - 184x184x43mm (7.24x7.24x1.69in)
• Product Weight - 1.3kg (2.87lb)
• Certification - IK10 (Excluding Front Window)

Certifications & Standards

• Security - UL294, SIA OSDP Verified
• EMC - FCC 47 CFR Part 15, Subpart B
• Safety - UL 62368-1, ULc 62368-1
• Environment - UL2043, California Prop 65, UKCA, CE

General

• Webpage Language - English, Korean, French
• Memory - 8GB eMMC
• Included Accessories - Installation Manual, Terminal blocks, T20 Tool, FAI Cable Jumper
• Warranty - 5 years

NHP-P200 Specifications PDF
