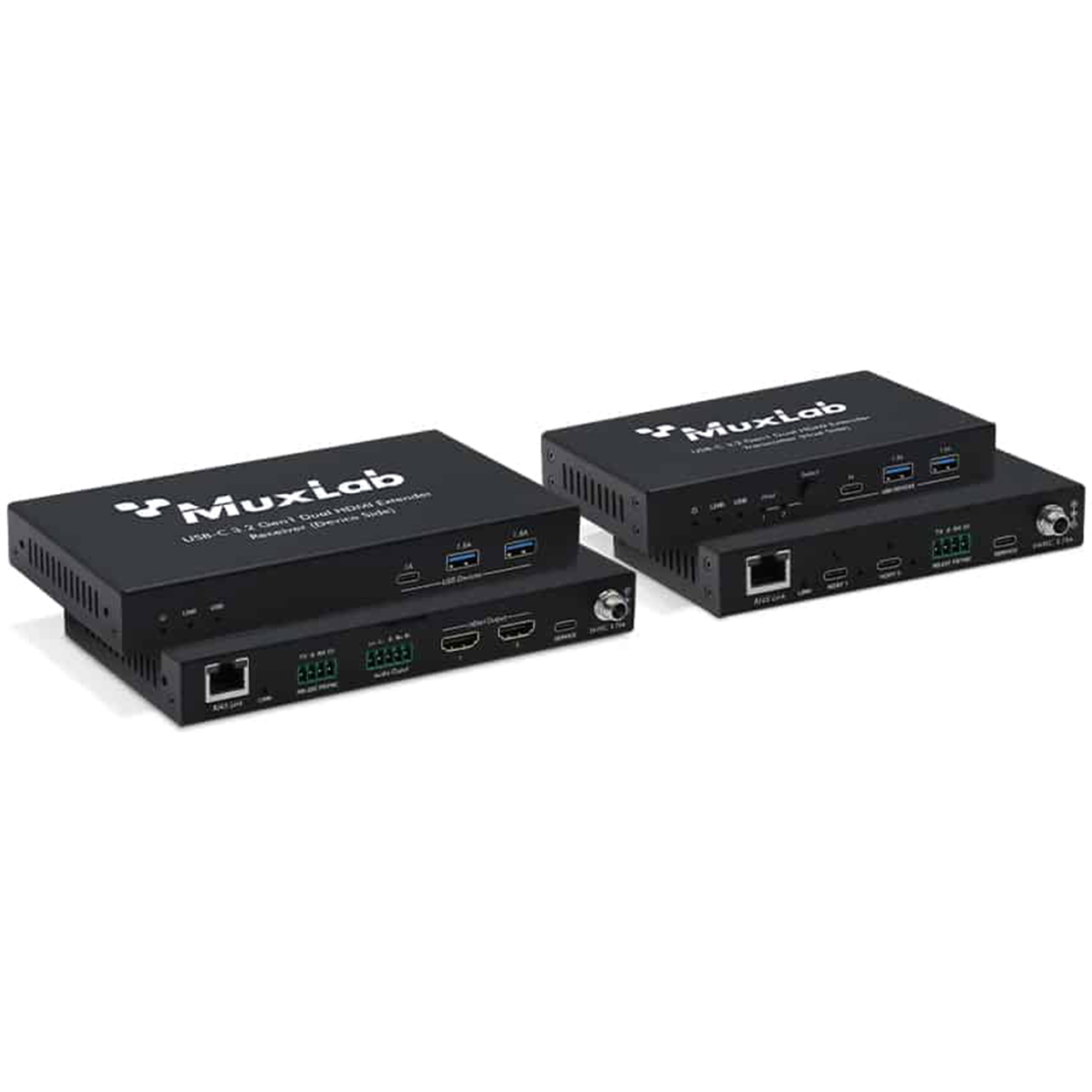

500536 MuxLab USB-C 3.2 Gen1 Dual HDMI Extender Kit 100m

There are currently no active sales or promotions related to this item.

SKU: 500536

Brand: MuxLab

USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m

Features

Extension of USB 3.2 Gen1 up to 100m/328ft over CAT6a cable
USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
Built-in DisplayLink technology for video over USB on dual HDMI outputs, supporting up to 4K/60Hz
Backwards compatible with USB 2.0 and USB 1.1
Hardware acceleration for isochronous and bulk transfer
USB-C and USB-A Ports supports 5VDC up to 1.5A and 1A on the Receiver
Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
Support bi-directional 24VDC PoC
Simple plug and play, no driver and setting installation required

The USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m (model: 500536) enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 100m (328ft) over standard Cat6a UTP cable. Transmitter features with Two USB-C 3.2 Gen1 selectable hosts port, three local (One USB-C and two USB-A) input, one FSYSNC GPIO input and one RS-232 passthrough. Receiver features with three USB 3.2 Gen1 (One USB-C and Two USB-A) outputs, two HDMI output ports, one FSYSNC GPIO output and one RS-232 pass through. The device also supports 24V Bi-directional PoC.

The USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.

More details...

There are currently no active sales or promotions related to this item.

MPN: 500536

MSRP Price: $1,047.00

Web Price: $1,047.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Technical

USB Protocol - USB 3.2 Gen1
Transmission Rate - Up to 5Gbps
Network Bandwidth - 10G
Transmission Distance - 100m/328ft over CAT6a (F/FTP) cable
ESD Protection - IEC 61000-4-2: Â±8kV (Air-gap discharge), Â±4kV (Contact discharge)

Connection

Transmitter - Input: 2 x USB HOST [USB-C, 24pin Female] Output: 1 x USB-C DEVICE [USB Type C, 24-pin female] 2 x USB-A DEVICE [USB Type A, 9-pin female] 1 x HDBT-USB3 [RJ45 connector, 24V PoC] Control: 1 x RS-232 [3pin-3.5mm Phoenix Connector] 1 x FSYNC [1pin-3.5mm Phoenix Connector] 1 x SERVICE [USB-C,Update Port]
Receiver - Input: 1 x HDBT-USB3 [RJ45 connector, 24V PoC] Output: 2 x USB-A DEVICE [USB Type A, 9-pin female] 1 x USB-C DEVICE [USB Type C, 24-pin female] 2 x HDMI OUT [Type A, 19-pin Female] 1 x AUDIO OUT [Terminal Block 5-pin] Control: 1 x RS-232 [3pin-3.5mm Phoenix Connector] 1 x FSYNC [1pin-3.5mm Phoenix Connector] 1 x SERVICE [USB-C, Firmware Update Port]

Mechanical

Housing - Metal Enclosure
Color - Black
Dimensions - Transmitter: 140mm [W] x 75mm [D] x 23mm [H] Receiver: 180mm [W] x 95mm [D] x 23mm [H]
Weight - Transmitter: 324g, Receiver: 486g
Power Supply - Input: 100~240VAC 50/60Hz Output: 24VDC/3.75A
Power Consumption - PoC Power Supply:68W (Max)
Operating Temperature - 0Â°C ~ 40Â°C /32Â°F ~ 104Â°F
Storage Temperature - -20Â°C ~ 60Â°C / -4Â°F ~ 140Â°F
Relative Humidity - 20~90% RH (non-condensing)
