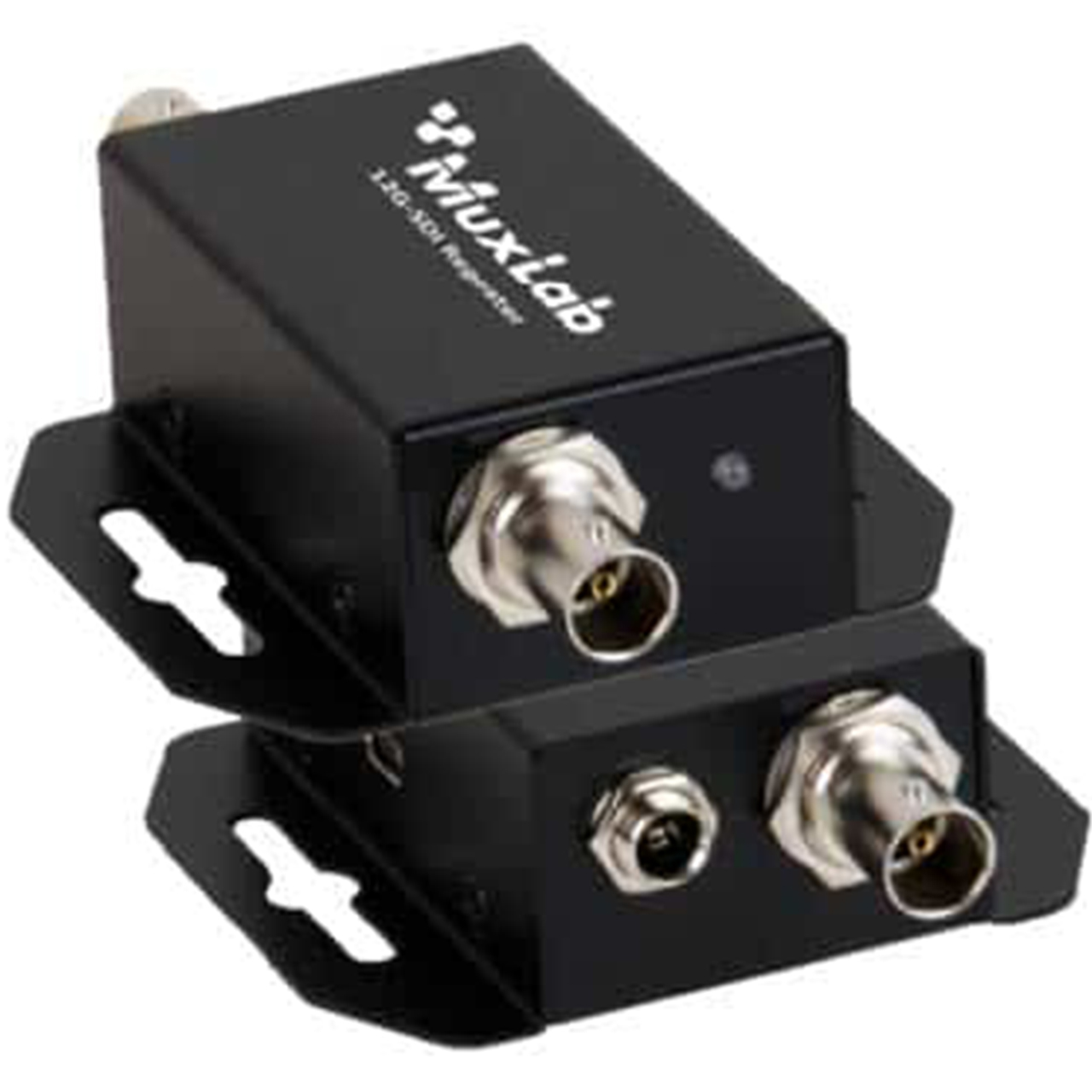

500742 MuxLab 12G-SDI Repeater

There are currently no active sales or promotions related to this item.

SKU: 500742

Brand: MuxLab

12G-SDI Repeater

Features

Wide support of SDI video signal resolutions
High Quality 12G-SDI Re-clocking & Amplification Technology
Multi-Standard Support (12G, 6G, 3G, HD, and SD-SDI)
Auto Source Video Format Detection Supports 16-channel, 24-bit Audio formats Easy plug and play installation
Rugged design and integrated brackets for easy mounting

The 12G-SDI Repeater (Model 500742) is a 12G-SDI to 12G-SDI Repeater with Amplification and Re-clocking Technology and auto source video format detection. It performs high-quality, low-delay video auto format detection, video signal re-clocking, and video signal amplification for transmission over a long distance. It features one 12G-SDI video input, one 12G-SDI loop video output, a locking Power Supply connector, and a USB port for software control and firmware upgrade. An output LED shows the status of the Phase Locked Loop (PLL) Video Signal Locking.

More details...

There are currently no active sales or promotions related to this item.

MPN: 500742

MSRP Price: $476.00

Web Price: $476.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Environment - SD-SDI up to 12G-SDI
Video Resolution - 12G-SDI
Distance at 12G-SDI - Input 100M / Output 100M (Cable: Canare L-5.5CUHD) Input 70M / Output 50M (Cable: Belden 1694A)
Distance at 3G-SDI - Input 100M / Output 100M (Cable: Belden 1694A)
USB Link - Mini-USB
Power Supply - 12VDC, Locking connector
Working Temperature - 0â„ƒ to 40â„ƒ, up to 95% humidity non-condensing
Storage Temperature - -20â„ƒ to 60â„ƒ. Bring to working temperature range before power-up.

Supported Video Formats

SDI Input Video Resolutions - 12G-SDI 4096x2160p, 60/50fps 3840x2160p, 60/50fps 6G-SDI 4096x2160p, 30/25/24fps 3840x2160p, 30/25/24fps
SDI Input Video Resolutions - 3G-SDI 1920x1080p, 60/50fps HD-SDI 1920x1080p, 30/25/24fps 1920x1080i, 60/50fps 1280x720p, 60/50fps SD-SDI 720x480i, 60fps 720x576i, 50fps
SDI Output Video Resolutions - SDI Loop Through has same video resolutions and frame rates as SDI Video Input

Supported Audio Formats

SDI Audio Input - Up to 16-Channel, 24-bit, up to 48 kHz
SDI Audio Output - Up to 16-Channel, 24-bit, up to 48 kHz

Mechanical

Housing - Black Metal Enclosure
Dimensions - 100 x 70 x 26mm
Warranty - 2 years
Order Information - 500742 12G-SDI Repeater (UPC: 627699007426)

500742 Specifications PDF

Video production & Broadcasting, Studio-to-studio & Post production, Outside broadcasting vehicle, Mobile video & Live events , SDI Camcorders, Medical imaging
