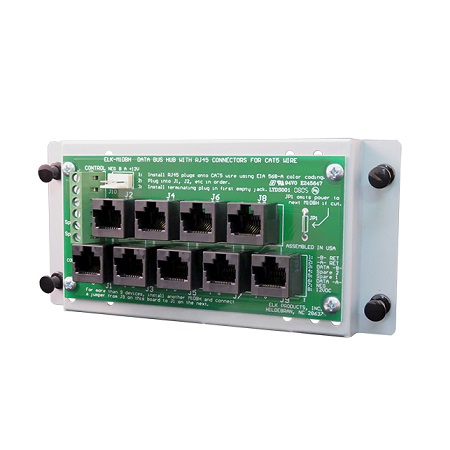

ELK-M1DBH ELK Data Bus Hub

There are currently no active sales or promotions related to this item.

SKU: ELK-M1DBH

Brand: Elk Products

Accommodates 9 Data Bus Home Run Cables
Data lines A & B are series connected on-board between each connected home run
Two or or more M1DBH Hubs may be connected in a straight (single) daisy chain to increase the number of home runs
Simple EOL Bus Termination Via RJ45 Terminating Resistor Plug (Included)
Flexible Mounting Options

More details...

There are currently no active sales or promotions related to this item.

MPN: ELK-M1DBH
UPC: 762158550027

MSRP Price: $76.00

Price: $50.76

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

The ELK-M1DBH is the ideal way to connect multiple data bus home runs to the M1 Control. It utilizes 8 conductor CAT5/6 type cables terminated with RJ45 plugs.

Specifications

6 Position Screw Terminal Input
4 Position Quick Connect (J10) - For Use With ELKW018B Cable Assembly
Data Bus Outputs - RJ 45 8-Pin Jacks
Circuit Board Dimensions - 5" x 2.5"
Mounting Plate Dimensions - 6.5" x 3" x .5"

ELK-M1DBH Manual
