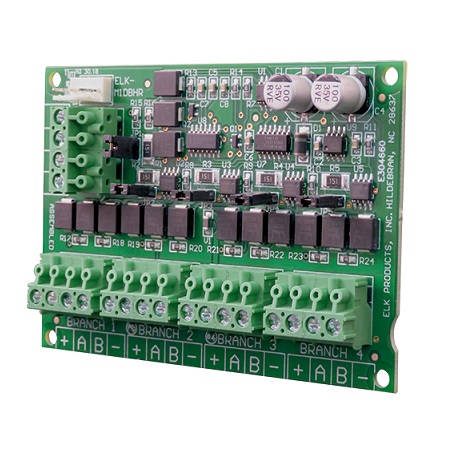

ELK-M1DBHR ELK Data Bus Hub Retrofit

SKU: ELK-M1DBHR

Brand: Elk Products

Splits The Controls' RS-485 Data Bus Output Into 4 Managed Branches
Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
EOL Termination Of Each Branch Insures Proper Operation And Supervision
Works With Std. 4 Conductor Home Run Wire
Includes Mounting Rails for ELK-SWB Boxes

More details...

MPN: ELK-M1DBHR
UPC: 762158550379

MSRP Price: $126.00

Price: $88.99

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

The ELK-M1DBHR is an "active" RS-485 data bus hub designed for jobs where an M1 Control is retrofitting an older panel that has multiple homerun 4 conductor keypad/data wires. It splits the main 485 data bus into 4 managed 485 branches. Each branch can have 2 parallel home run cables for a total of 8 home runs. The end of each cable is EOL terminated to insure proper operation and supervision.

Specifications

Inputs - Elevator Screw Terminals, 4 Position
Output - Elevator Screw Terminals, 4 Position
Current Draw - 30mA nominal PLUS 20mA per RS485 active branch driver. Total combined with all 4 branches active would be ~110mA
Circuit Board Dimensions - 4.9" x 2.75"

ELK-M1DBHR Manual
