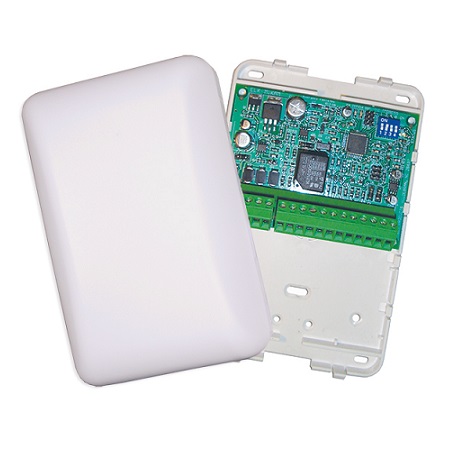

ELK-M1KAM ELK Single Door Access Module

SKU: ELK-M1KAM

Brand: Elk Products

Input for a 26 bit Wiegand Reader
Input for a Dallas "One-Wire" iButton Reader
Heavy Duty Form "C" Relay Contacts for Switching Door Strike Power
Low Current (50mA) Switched Negative (pull to ground) Output for Door Held Open Alarm
Low Current (10mA) Switched Negative (pull to ground) Output for System Ready To Arm indication
Low Current (10mA) Switched Negative (pull to ground) Output for System Armed indication
Supervised Input for RTE (Request To Exit) Button/Device
Supervised Input for Door Status Sensor

More details...

MPN: ELK-M1KAM
UPC: 762158550522

MSRP Price: $214.00

Price: $152.31

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

The M1KAM is a single door access interface for use with the M1 Control Panel family. It connects to the 4 wire keypad data bus and takes the place of a traditional M1 Keypad. The maximum number of Keypads (combination of M1KAMs and Keypads) that may be connected to an M1 is 16.

Specifications

Connections - Unpluggable Screw Terminals, 16 Position
Operating Voltage - 13.8 VDC
Current Draw - Less than 30 mA with min. activity, 44 mA fully active
Housing Dimensions - 4.25" x 6.375" x 2.125"
Circuit Board Dimensions - 3.95" W x 2.875" H x .95" D

ELK-M1KAM Manual
