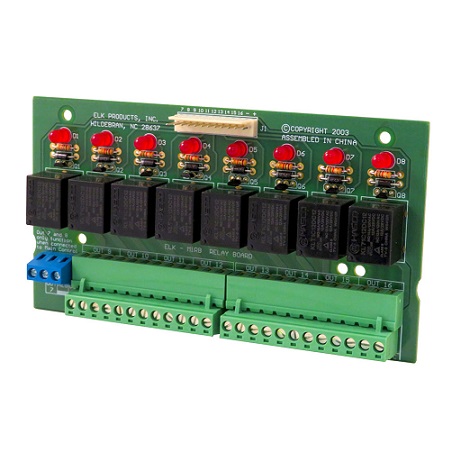

ELK-M1RB ELK Output Relay Board

SKU: ELK-M1RB

Brand: Elk Products

8 Form "C" Relays, SPDT Dry Contact
Heavy Duty Contact Rating
Low Current Draw
Great For General Purpose Switching
Plug-in "Removable" Terminal Blocks
LED Status Indicators on all 8 Relays
Twelve (12) Conductor Plug-in Wire Harness
Mounts in Enclosure using ELK-SWG Glides

More details...

MPN: ELK-M1RB
UPC: 762158550089

MSRP Price: $124.00

Price: $86.77

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

The ELK-M1RB works with an M1 or M1G Control, or with an M1XOV or M1XOVR Output Expander, for converting the low current (50mA) voltage outputs into SPDT relay outputs.

Specifications

Diode Protection Across Relay Coil
Relay Contact Ratings - 7 Amps @ 28 VDC, 10 Amps @ 125 VAC
Wire Harness Length - 24"
Operating Voltage - 12 Volts DC Nominal
Current Draw - 0 mA idle, 250 mA Max
Size - 6" x 3.25" x .75" H

ELK-M1RB Manual
