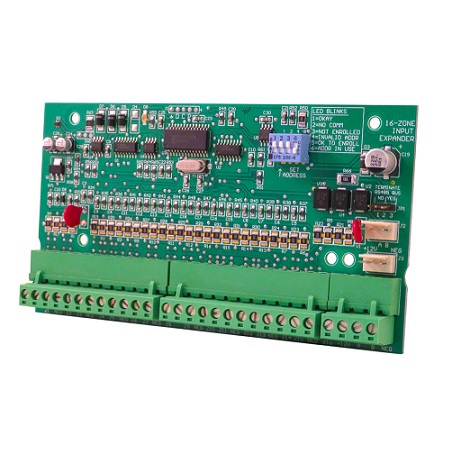

ELK-M1XIN ELK 16 Zone Input Expander

The ELK-M1XIN adds 16 hardwired zones (EOL resistor supervised) to the M1 or M1G Control. It operates on the 4-wire data bus and features flash memory which allows field updating of its operating firmware. Up to 12 zone M1XIN boards may be connected, increasing total zones (inputs) to 208.

Specifications

• Inputs - Plug-In Terminals with Elevator Style Wire Clamps and Screws
• Operating Power Range - 9 to 14 VDC
• Current Draw - 65 mA
• Size - 6" x 3.25" x .75" H
