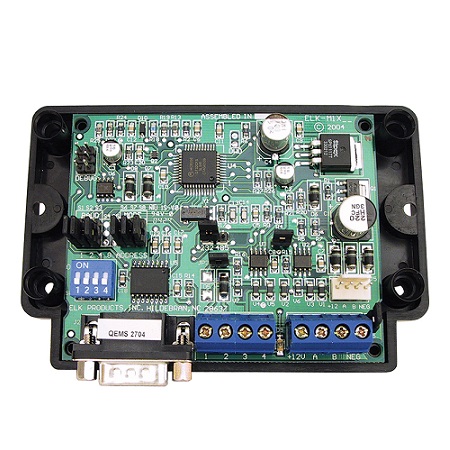

ELK-M1XSP ELK Serial Port Expander & Lighting/Thermostat Interface

SKU: ELK-M1XSP

Brand: Elk Products

Adapts the M1 to Lighting Controls and Thermostats
Expands the M1 or M1EZ8 RS-232 Serial Ports
Connect to and RS485 Keypad Data Bus
Address Settings via DIP Switches
Jumper Options and LED Diagnostic indicator
On-Board EOL Bus Termination Jumper
Flash Memory for Firmware Updating

More details...

MPN: ELK-M1XSP
UPC: 762158550201

MSRP Price: $172.00

Price: $122.68

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

The ELK-M1XSP is a "3 in 1" product. It can be used for interfacing with Lighting Control Products, Thermostat (HVAC) Products, or to add a remote Serial Port for generaly purpose communications. Jumpers on the M1XSP select the appropriate application, connection, and protocol.

Specifications

Maximum of Expandable Ports (Units) - 7 with M1G or M1EZ8
Operating Voltage - 12 Volts D.C.
Current Draw - 31mA
Housing Dimensions - 4.375" x 3.0" x 1.125"
Circuit Board Dimensions - 3.5" x 2.75

ELK-M1XSP Manual
