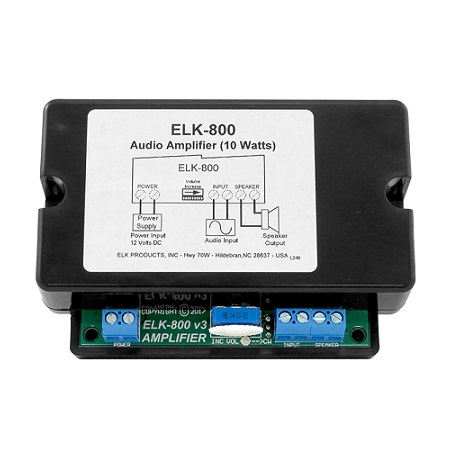

ELK-800 ELK 10 Watt Audio Amplifier

A compact, low cost audio amplifier designed for paging (public address) applications. The ELK-800 can be centrally or remotely installed. It operates on low voltage, thus saving money by requiring only 22-24 gauge telco or alarm type wire.

Specifications

• Output Rating - 10 Watts**
• Speaker (Output) Load - 2 to 16 Ohms**
• Power Input - 12 to 18 Volts AC or DC**
• Current Draw - 50 to 800 mA
• Input Impedance - 1000 Ohms nominal
• Size - 4.5" x 3" x 1.2"

ELK-800 Specifications PDF
