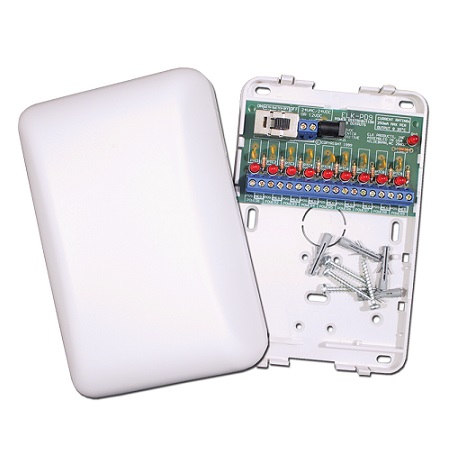

ELK-PD9 ELK Power Distribution Module 250mA Rated Outputs

These Power Distribution Modules conveniently distribute a single A.C. or D.C. input into nine individual outputs, for centrally powering Video Cameras, PIRs, Photobeams, etc. Each output is protected with an auto-resetting PTC to protect a shorted output from disabling the other outputs.

Specifications

• Max Current Draw - 250mA from each output
• Max Combined Current Draw - Not to Exceed Input Power Source
• Input/Output Voltage - 6 to 30 Volts A.C. or D.C.
• Input Connection - Screw Terminals or 2.1mm Plug-In D.C. Jack
• Output Connection - Screw Terminals (POS and NEG) for each Output
• Enclosure Size - 6.5" x 4.3" x 2"

ELK-PD9 Specifications PDF
