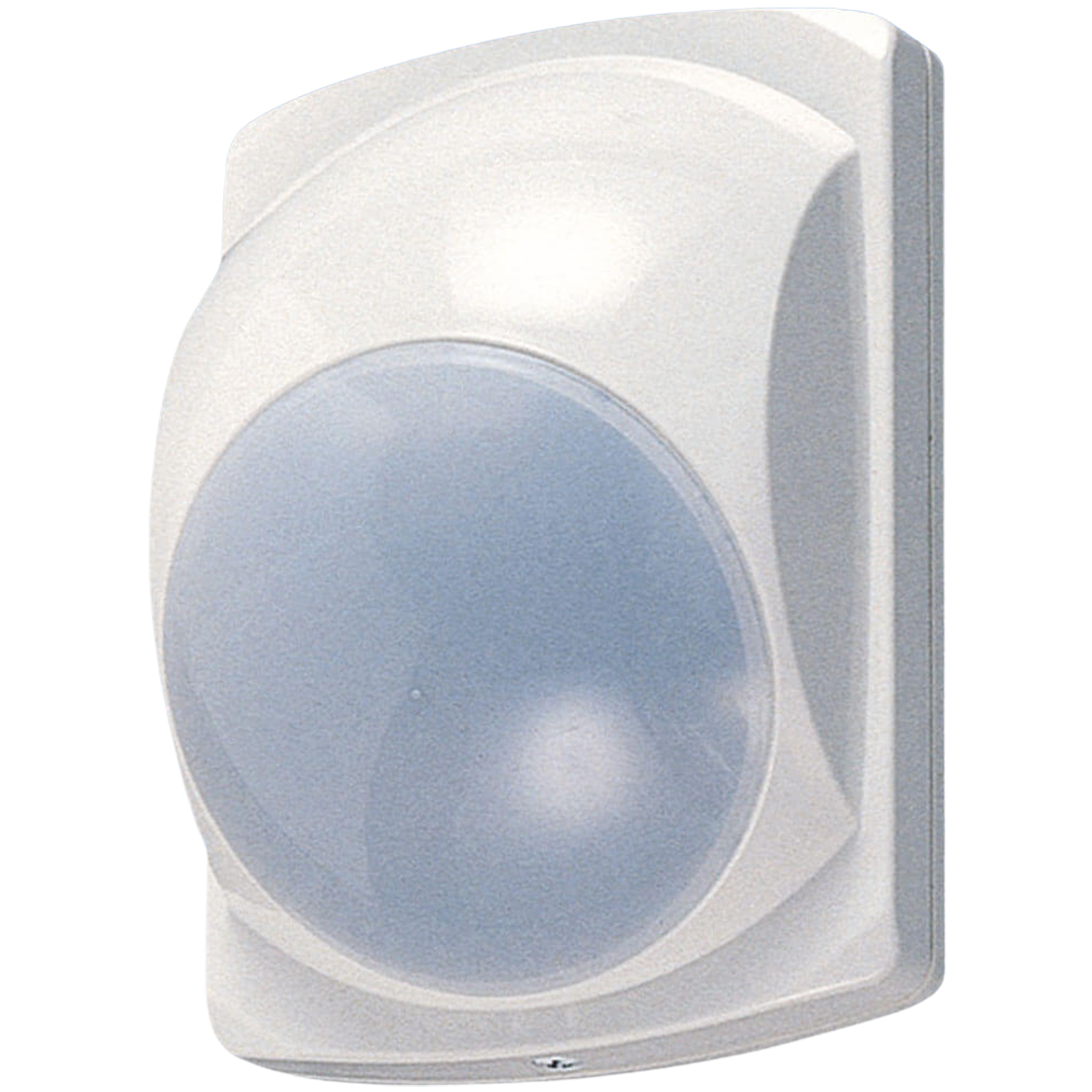

PA-4810E Takex 40' Wide Angle, Quad Element PIR, Fuzzy Logic, Fine Motion Detection

WALL MOUNT HIGH QUALITY PASSIVE INFRARED SENSOR

ORIGINAL QUAD ELEMENT + NEW SIGNAL PROCESSING (FUZZY LOGIC)

TAKEX original quad pyroelectric sensor improves sensitivity. This newly developed original pyroelectric sensor coupled with new Fuzzy Logic provides high catchability.

MIRROR OPTICS AND EASY AIMING SYSTEM

Precise mirror optics and new quad element assure high sensitivity and high reliability. As mirror and head unit move together, area adjustment does not reduce/blur sensitivity. TAKEX original view finder assures precise and quick adjustment.

TROUBLE ALARM

Unit monitors the following functions. When a trouble condition is detected, the alarm LED lights and trouble alarm is output.
Unit trouble------ A trouble alarm is triggered when inner circuitry/wiring damaged/broken.
Low voltage------ A trouble alarm is triggered when sensor detects a drop in supply voltage.
Failure to replace------ A trouble alarm is triggered when head unit is not replaced after adjustment is completed.

FINE MOTION DETECTION

Unit can be adjusted from quad element sensing to two twin element by built-in switch for situations where close range detection is desirable. *Alarm LED disable (ON/ OFF)
*Alarm contact changeover (N.C./ N .O.)
*Sensitivity adjustment (60%, 80%, 100%,1 20%)

ALARM MEMORY

Units contain special circuitry to indicate an alarm has been activated during armed period. Especially useful when more than one unit is used per zone.

REMOTE LED CONTROL

Alows the LED to be enabled/disabled via the control panel.

Specifications

• Detection system - Passive infrared
  (Quad element + Fuzzy logc)
• Coverage - Wide angle 12m Max (40')
• Sensitive zone - 18 pairs (72 zones)
  36 pairs (Fine motion detection)
• Supply voltage - 10 to 30 V DC (non-polarity)
• Current consumption - 32mA Max
• Alarm output - Dry contact relay ( N.C./ N.O. changeover)
  Reset: approx. 2 sec
  30V (AC/DC) 0.25A Max ( resistive load)
  (porotective resistance built-in 3.3Ω)
• Trouble output - Unit trouble: monitors damage on inner circuitry / wiring
  (Operate: initiate trouble alarm)
  Low power voltage: monitors drop in power voltage
  (Operate: initiate trouble alarm)
  Failure to replace: monitors failure to replace head unit
  (Operate: initiate trouble alarm)
• Tamper output - Dry contact (N.C) Open when cover is detached
  30V (AC/DC) 0.1 A Max (resistive load)
• LED indicator - Red LED
  Warm up: flickering (every 0.5 sec.)
  Alarm: solid (approx. 2 sec.)
  Memory: continuous solid
  Trouble alarm: continuous solid (LED disable)
• Adjustment - Vertically: 20degrees Horizontally: +/-5degrees
• Mounting position - Indoor wall / pillar
• Wiring - Terminals
• Weight - 165g (5.8oz)
• Accessory - Fixing screw: 4 × 30 2pcs.
• Ambient temperature - -10°C to +50°C (+14°F to +122°F) without condensation
