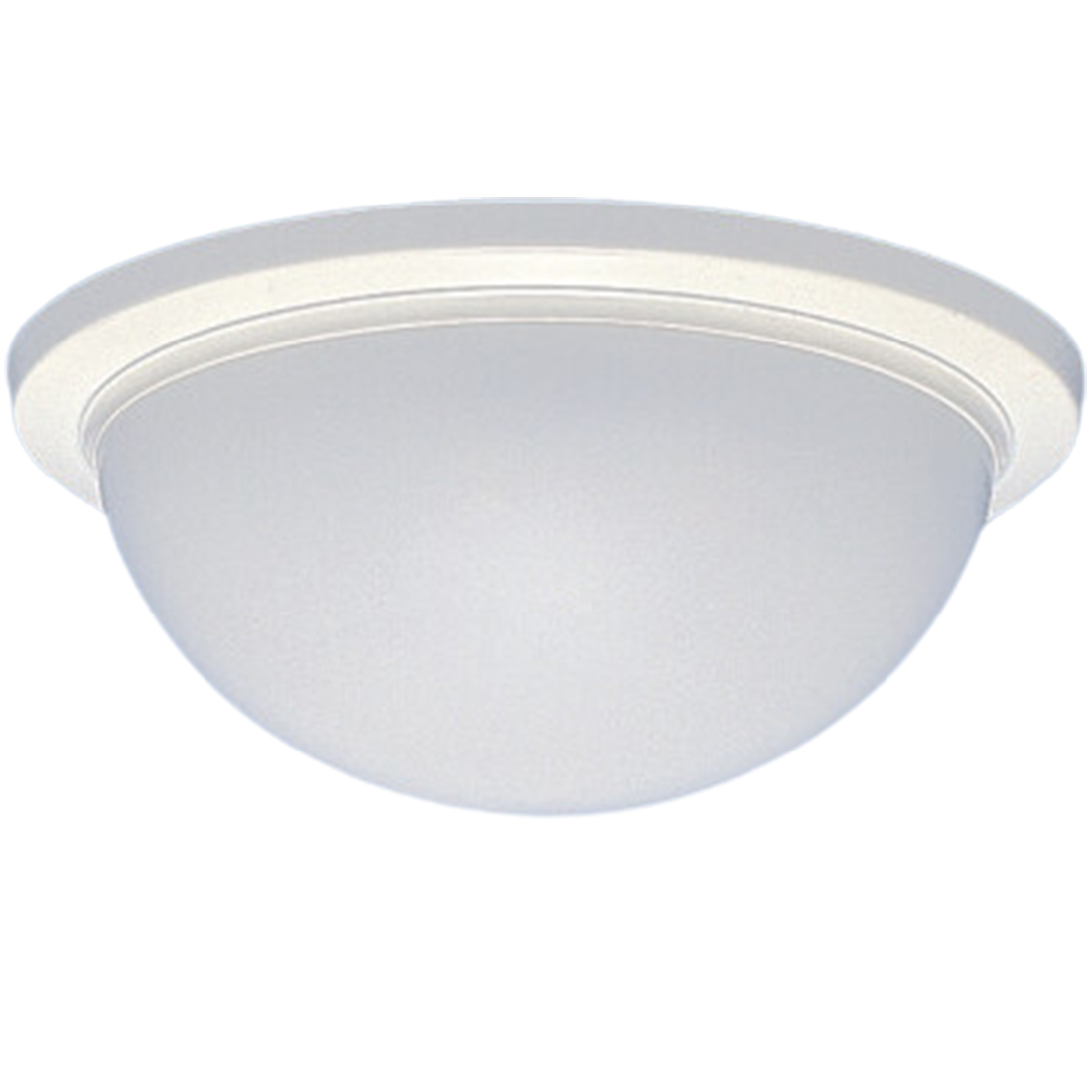

PA-5325E Takex 82' Long Range, Wall or Ceiling Mt, Fuzzy Logic, Slight Motion Detect

QUAD PIR WITH FUZZY LOGIC SIGNAL PROCESSING

Quad elements coupaled with “Fuzzy logic” signal processing (discriminating temperature differential information and object size) provide high “catchability”. The series offers several unique features that make this sensor a desirable choice for high security applications.

HIGH PERFORMANCE

Dual twin element, optical unit and signal processing circuitry enable high density protection area. Ceiling/wall mountable.

SLIGHT MOTION DETECTION

The unit can be adjusted from quad element sensing to twin element sensing, which doubles the number of sensitive zone, suited for situations where close range detection is desirable. (Highest sensitivity setting)

SELF-TEST FUNCTION

The unit performs a self-checkup of alarm contact whenever an alarm is indicated. The alarm LED flashes if the contact is short-circuited, or damaged by induced lightening, etc.

BUILT-IN ALARM MEMORY

Memory LED indicates which sensor triggered an alarm during armed condition when two or more sensors are connected on the same line.

TROUBLE ALARM

The trouble found out is notified by continuous alarm output and lighting of alarm LED.
Unit trouble :
When inner circuit / wiring is damaged or broken.
Low voltage :
When the supply voltage drops down to approx. 8.5V DC.
Positioning :
When the sensor head fails to return automatically after
adjustment is completed.

Specifications

• Detection system - Passive infrared (QUAD)
• Coverage - Vertical curtain protection 82' (25m)Max.
• Sensitive zone - 24 (6 pairs)
• Supply voltage - 9.5 to 30V DC (non-polarity)
• Current consumption - 25mA Max. (N.C. /N.O. contact)
• Alarm output - Dry contact (Semi-Conductor)
  Reset : Approx. 2 sec. (N.C. /N.O. SELECTABLE)
  24V (AC/DC) 0.25A Max. (protective resistor 3.3Ω)
• Tamper output - Dry contact (type N.C.)
  Open when cover or body is detached
  30V DC 0.1A Max.
• Alarm memory - 3min. -Flickering, 47min. -Lighting
• Slight motion detection - Sensitive zone : 36 pairs
• LED indicator - Red LED
  Flickering (every 0.5 sec.) : Warming-up
  Lighting (approx.2sec.) : Alarm
  Flickering (every 0.25 sec.) : Trouble indication
  Continuous lighting : Trouble alarm
  (Disabled is LED except trouble indication)
  Yellow LED
  Flickering : Memory activated
  Lighting : Memory indicated
• Trouble output - Unit trouble : Monitoring inner circuit and wiring damage
  • Operation : Trouble alarm
  Low voltage trouble : Monitoring low voltage
  • Operation : Trouble alarm
  Positioning trouble : Monitoring failure to replace view finder
  • Operation : Trouble alarm

• Mounting position - Indoor (ceiling / wall)
• Wiring - Terminals
• Weight - 8.75 oz (250g)
• Appearance - Body : ABS resin
  Cover : PE resin
• Adjustment - Ceiling mount : Vertically 26°Horizontally ±15°
  Wall mount : Vertically 20°Horizontally ± 5°
• Ambient temperature - ＋14°F to ＋131°F (without dewdrops) (－10°C to ＋55°C)
