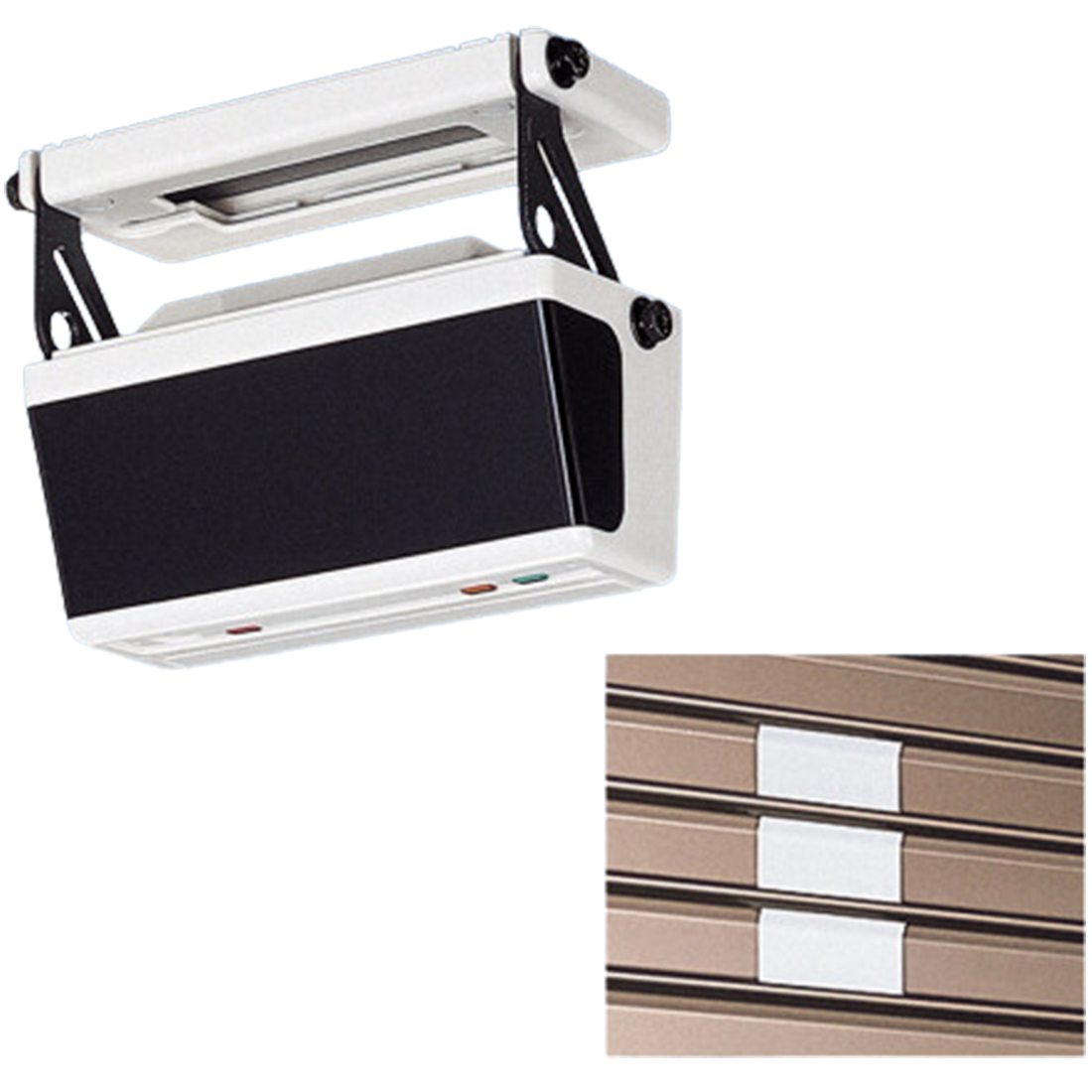

PR-S3 Takex Roll-Up Door Sensor Near-Infrared Reflection type, Up to 15.7" detection range

There are currently no active sales or promotions related to this item.

SKU: PR-S3

Brand: Takex

PR-S3

Features

Alarm memory function
Easy to find the alarmed unit even if multiple units are in the same system by the memory indicator lights 47 min after blinks for 3 min at detection.
Unique double beam
Unique double beam detection method drastically decreases the possibility of false alarms caused by shutter rattle, small bugs, and reflected light.
Operation indicator output
External operation check available even if the sensor is installed within the shutter winding case.
Radio/electrical noise resistance
Unique circuit and mechanical design realises high-level noise resistance.
Flexible installation
Adjustable the distance between the sensor and magnet sheets and the height by the mounting arm.
Sensitivity indicator
Sensitivity indicator lights on at the low reception level due to the dirt or dust on the reflection sheets.
Simple and compact design
Discreet design match to any properties.
Convenient additional functions
- Delay circuit built-in to prevent malfunction caused by shutter rattle
- Operation LED (green) helps operation check > Armed : ON, Disarmed : OFF
- Secure wide wiring space
- Reflection sheet has high adhesive force, flexibility and weather resistance

Near infrared type shutter sensor with built-in alarm memory function. Unique double beam detection method drastically decreases the possibility of false alarms caused by shutter rattle, small bugs, and reflected light.

More details...

There are currently no active sales or promotions related to this item.

MPN: PR-S3

MSRP Price: $101.00

Web Price: $101.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

SHUTTER SENSOR (Near-Infrared Reflection type)

Alarm memory function built-in near infrared type shutter sensor

Alarm memory function

Easy to find the alarmed unit even if multiple units are in the same system by the memory indicator lights 47 min after blinks for 3 min at detection.

Unique double beam

Unique double beam method drastically decreases the possibility of false alarms caused by the shutter rattling, small bugs and reflection light

Operation indicator output

Available to check the operation from external even if the sensor installed inside the shutter winding case.

Decline the effect of radio/electrical noise

Unique circuit and mechanical design reveals high-leveled noise resistance.

Flexible installation

Adjustable the distance between the sensor and reflection sheets and the height by the mounting arm.

Sensitivity indicator

Sensitivity indicator lights on at the low reception level due to the dirt or dust on the reflection sheets.

Simple and compact design

Discreet design match to any properties.

Convenient additional functions

Delay circuit built-in to prevent malfunction caused by the shutter rattling
Operation LED(green) helps operation check
Armed : ON, Disarmed : OFF
Secure wide wiring space
Reflection sheet has high adhesive force, flexibility and weather resistance

Specifications

Detection system - Near infrared (reflection type) / Double beam
Detecting distance - 5~40cm
Response time - 1~3 sec.
Power supply - DC10~30V (non-polarity)
Current consumption - 35mA or less
Alarm output - Dry contact relay output 1c (open/close at alarm) 30V (AC/DC)・0.5A (resistive load)
LED indicator - Green LED: Lighting at alarm
Red LED: Lighting as the beam reception level attenuated
Yellow LED: 3min blinking 47min lighting and automatically reset
Mounting position - Indoor (shutter case, lintel)
Wiring - Terminals
Weight - Approx. 115g
Appearance - Case: Resin (white), Window: Resin (black)
Ambient temperature - -25℃ ~ +50℃
