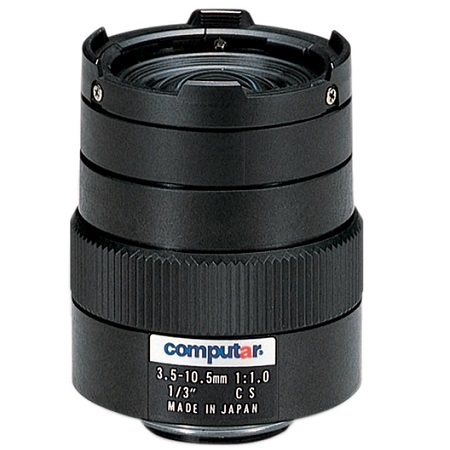

T3Z3510CS Computar 1/3" 3.5-10.5mm f1.0 Vari-Focal Manual Iris CS-Mount Lens

Specifications

• Model No - T3Z3510CS
• Focal Length - 3.5mm - 10.5mm
• Max. Aperture Ratio - 1:1.0
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.0 - F16C
• Focus - 0.3m - Inf.
• Zoom - 3.5mm - 10.5mm
• Control
• Iris - Manual
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 3.5mm - 51.8cm x 34.1cm
  • 10.5mm - 14.5cm x 10.8cm
• Angle of View
• 1/3 type
  • D - 108.2°‐ 34.2°
  • H - 81.6°‐ 27.2°
  • V - 59.2°‐ 20.4°
• 1/4 type
• D - 75.9°‐ 25.5°
• H - 59.2°‐ 20.4°
• V - 43.8°‐ 15.3°
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ18.5mm
• Rear - φ10.1mm
• Back Focal Length
• Tele - 16.3mm
• Wide - 8.0mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size -
• Dimensions - φ41.6mm x 48.8mm
• Weight - 63g

T3Z3510CS Spec Sheet
