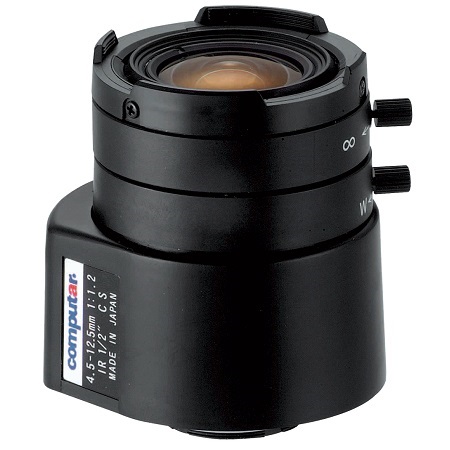

HG3Z4512FCS-IR Computar CS-Mount 4.5-12.5mm Vari-focal F/1.2 IR-corrected DC Auto Iris Lens

Specifications

• Model No - HG3Z4512FCS-IR
• Focal Length - 4.5mm - 12.5mm
• Max. Aperture Ratio - 1:1.2
• Max. Image Format - 6.4mm x 4.8mm (φ8mm)
• Operation Range
• Iris - F1.2 ‐ F360C
• Focus - 0.3m ‐ lnf.
• Zoom - 4.5mm - 12.5mm
• Control
• Iris - Auto Iris
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 4.5mm - 53.7cm x 35.6cm
  • 30mm - 16.1cm x 12cm
• Angle of View
• 1/2 type
  • D - 108.0°‐ 37.6°
  • H - 83.7°‐ 30.1°
  • V - 61.3°‐ 22.6°
• 1/3 type
• D - 77.9°‐ 28.3°
• H - 61.3°‐ 22.6°
• V - 45.3°‐ 17.0°
• 1/4 type
• D - 57.2°- 21.2°
• H - 45.3°- 17.0°
• V - 33.7°- 12.7°
• Coil
  • Drive - 190 Ω
  • Control - 850 Ω
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ19.9mm
• Rear - φ9.9mm
• Back Focal Length
• Tele - 16.5mm
• Wide - 8.5mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - M35.5 P=0.5mm
• Dimensions - φ38.5mm x 47.5mm x 48.8mm
• Weight - 68g

HG3Z4512FCS-IR Specification PDF
