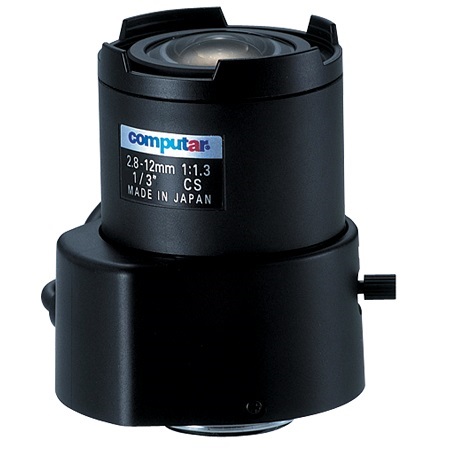

TG4Z2813AFCS Computar 1/3" 2.8-12mm f1.3 Varifocal Video Auto Iris CS-Mount Lens

Specifications

• Model No - TG4Z2813AFCS
• Focal Length - 2.8mm - 12mm
• Max. Aperture Ratio - 1:1.3
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.3 - F360
• Focus - 0.3m - Inf.
• Zoom - 2.8mm - 12mm
• Control
• Iris - Video Auto Iris
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 2.8mm - 69.3cm x 44.9cm
  • 12mm - 12.6cm x 9.4cm
• Angle of View
• 1/3 type
  • D - 121.8° - 29.6°
  • H - 98.2°‐ 23.8°
  • V - 73.6°‐ 17.8°
• 1/4 type
• D - 92.1°- 22.2°
• H - 73.6°- 17.8°
• V - 55.1°- 13.3°
• Supply Voltage - DC8.5V - DC16V
• Current - Less than 35mA
• Response Time - Approx. 2 sec
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - +15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ22.0mm
• Rear - φ8.8mm
• Back Focal Length
• Tele - 20.2mm
• Wide - 8.1mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size -
• Dimensions - φ37.5mm x 48mm x 56mm
• Weight - 72g
