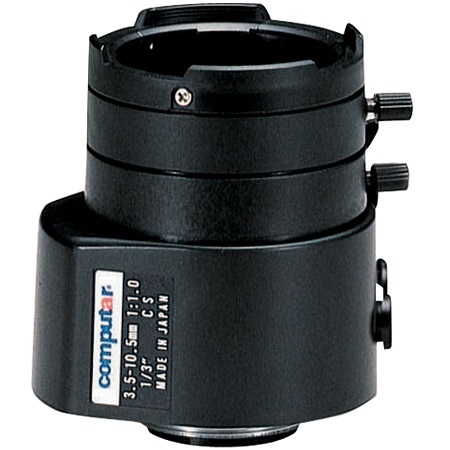

TG3Z3510AFCS Computar CS-Mount 3.5-10.5mm Vari-focal F/1.0 Video Auto Iris Lens

Computar varifocal video auto iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths. All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews and a durable metal barrel and mount, and are covered by a three year warranty.

Specifications

• Model No - TG3Z3510AFCS
• Focal Length - 3.5mm - 10.5mm
• Max. Aperture Ratio - 1:1.0
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.0 - F360C
• Focus - 0.3m - Inf.
• Zoom - 3.5mm - 10.5mm
• Control
• Iris - Video Auto Iris
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 3.5mm - 51.8cm x 34.1cm
  • 10.5mm - 14.5cm x 10.8cm
• Angle of View
• 1/3 type
  • D - 108.4° - 34.2°
  • H - 81.6° - 27.2°
  • V - 59.2° - 20.4°
• 1/4 type
  • D - 75.9° - 25.5°
  • H - 59.2° - 20.4°
  • V - 43.8° - 15.3°
• Supply Voltage - DC8.5V - DC16V
• Current - Less than 40mA
• Response Time - Approx. 2 sec.
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - 15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ18.5mm
• Rear - φ10.1mm
• Back Focal Length
  • Tele - 16.3mm
  • Wide - 8mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - -
• Dimensions - φ38.5mm x 48mm x 48.8mm
• Weight - 70g

TG3Z3510AFCS Specification PDF
