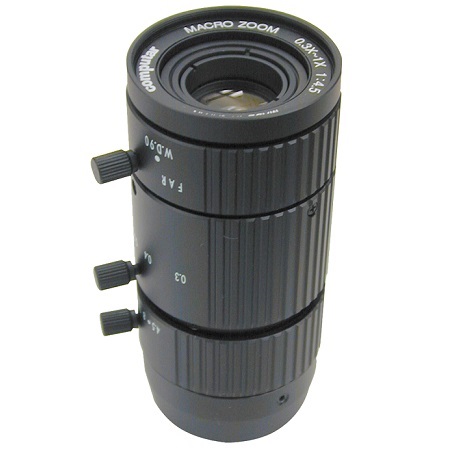

MLM3X-MP Computar 2/3" C-Mount 3.3X Macro-Zoom Mega-Pixel Manual Iris Lens

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Specifications

• Model No - MLM3X-MP
• Max. Magnification - 0.3X - 1.0X
• Max. Aperture Ratio - 1:4.5
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
• Iris - F4.5 - F22C
• Focus - 90mm
• Control
• Iris - Manual
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 2/3 Type
    • D - 36.7mm - 10.8mm
    • H - 29.4mm - 8.7mm
    • V - 22.1mm - 6.6mm
  • 1/2 type
    • D - 26.7mm - 10.8mm
    • H - 21.4mm - 6.4mm
    • V - 16.1mm - 4.8mm
• Angle of View
• 2/3 type
  • D - 14.88°-2.84°
  • H - 11.80°-2.78°
  • V - 8.74°-2.24°
• 1/2 type
• D - 10.70°-2.72°
• H - 8.48°-2.18°
• V - 6.38°-1.64°
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ15.5mm
• Rear - φ7.0mm
• Back Focal Length - 20.4mm
• Distortion
  • 2/3 type
    • 0.3X Tele +0.02%(y=5.5)
    • 1.0X Wide + 1.78%(y=5.5)
  • 1/2 type
    • 0.3X Tele - 0.12%(y=4.0)
    • 1.0X Wide + 0.77%(y=4.0)
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M34 P=0.5mm
• Dimensions - φ36mm x 79.5mm
• Weight - 150g
