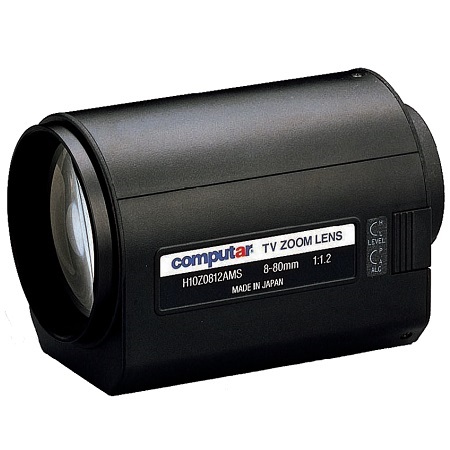

H10Z0812AMS Computar 1/2" C-Mount 8-80mm Motorized Zoom F/1.2 Video Auto Iris Lens

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - H10Z0812AMS
• Focal Length - 8mm - 80mm
• Max. Aperture Ratio - 1:1.2
• Max. Image Format - 6.4mm x 4.8mm(φ6mm)
• Operation Range
• Iris - F1.2 ‐ F560C
• Focus - 1.5m ‐ Inf.
• Zoom - 8mm - 80mm
• Control
• Iris - Video Auto Iris
• Focus - Motorized
• Zoom - Motorized
• Object Dimension at M.O.D.
  • 8mm - 124.8cm x 92.5cm
  • 80mm - 12.3cm x 9.2cm
• Angle of View
• 1/2 type
  • D - 54.3° - 5.8°
  • H - 44.0° - 4.7°
  • V - 33.3° - 3.5°
• 1/4 type
• D - 31.2° - 3.3°
• H - 25.0° - 2.6°
• V - 18.8° - 2.0°
• 1/3 type
• D - 41.3° - 4.4°
• H - 33.3° - 3.5°
• V - 25.0° - 2.6°
• Supply Voltage
  • Iris - DC8.5V - DC16V
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Iris - 40mA or less
  • Focus - 40mA or less
  • Zoom - 35mA or less
• Response Time
  • Iris - Approx. 2 sec
  • Focus - Approx. 4.5 sec
  • Zoom - Approx. 3.5 sec
• Preset Potentiometer -
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Remote Control - Level Remote (Option)/ ALC Remote (Option)
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - 15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ54.0mm
• Rear - φ14.0mm
• Back Focal Length - 15.3mm
• Flange Back Length - 17.526mm
• Mount - CS‐Mount
• Filter Size - M62 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W70mm x H81mm x D123.5mm
• Weight - 670g
