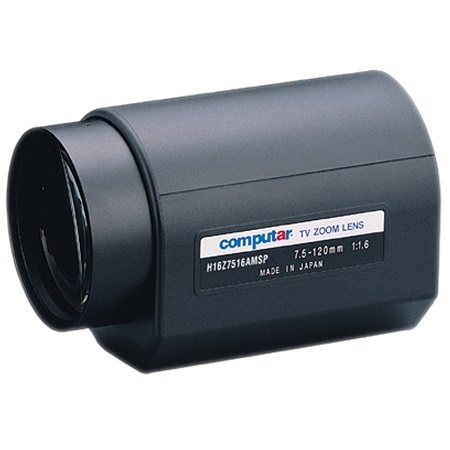

H16Z7516AMSP Computar 1/2" C-Mount 7.5-120mm Motorized Zoom F/1.6 Video Auto Iris Lens

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - H16Z7516AMSP
• Focal Length - 7.5mm - 120mm
• Max. Aperture Ratio - 1:1.6
• Max. Image Format - 6.4mm x 4.8mm(φ6mm)
• Operation Range
• Iris - F1.6 ‐ F560C
• Focus - 1.5m ‐ Inf.
• Zoom - 7.5mm - 120mm
• Control
• Iris - Video Auto Iris
• Focus - Motorized, Preset
• Zoom - Motorized, Preset
• Object Dimension at M.O.D.
  • 7.5mm - 129.2cm x 95.5cm
  • 120mm - 8.4cm x 6.3cm
• Angle of View
• 1/2 type
  • D - 57.2° - 3.9°
  • H - 46.6° - 3.2°
  • V - 35.3° - 2.4°
• 1/3 type
• D - 43.8° - 3.0°
• H - 35.3° - 2.4°
• V - 26.6° - 1.8°
• 1/4 type
• D - 33.1° - 2.2°
• H - 26.6° - 1.8°
• V - 20.0° - 1.35°
• Supply Voltage
  • Auto Iris - DC8.5V - DC16V
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Auto Iris - 40mA or less
  • Focus - 45mA or less
  • Zoom - 35mA or less
• Response Time
  • Auto Iris - Approx. 2 sec
  • Focus - Approx. 3.5 sec
  • Zoom - Approx. 3.5 sec
• Preset Potentiometer - Focus - 5kΩVR , Zoom - 5kΩVR
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Remote Control - Level Remote (Option)
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - 15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ66.4mm
• Rear - φ13.5mm
• Back Focal Length - 14mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M72 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W82mm x H97.4mm x D149mm
• Weight - 1080g

H16Z7516AMSP Specification PDF
