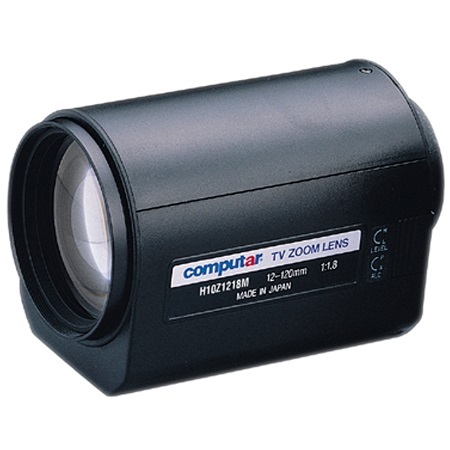

H10Z1218M Computar 1/2" C-Mount 12-120mm Motorized Zoom F/1.8 3 Motors

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - H10Z1218M
• Focal Length - 12mm - 120mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 6.4mm x 4.8mm(φ6mm)
• Operation Range
• Iris - F1.8 - F22C
• Focus - 1.5m - Inf.
• Zoom - 12mm - 120mm
• Control
• Iris - Motorized
• Focus - Motorized
• Zoom - Motorized
• Object Dimension at M.O.D.
  • 12mm - 78.7cm x 58.9cm
  • 120mm - 8.1cm x 6cm
• Angle of View
• 1/2 type
  • D - 36.4° - 3.8°
  • H - 29.4° - 3.1°
  • V - 22.2° - 2.3°
• 1/3 type
• D - 27.6° - 2.9°
• H - 22.2° - 2.3°
• V - 16.7° - 1.7°
• 1/4 type
• D - 20.8° - 2.1°
• H - 16.7° - 1.7°
• V - 12.5° - 1.3°
• Supply Voltage
  • Iris - DC8V
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Iris - 20mA or less
  • Focus - 40mA or less
  • Zoom - 35mA or less
• Response Time
  • Iris - Approx. 2.5 sec
  • Focus - Approx. 4.5 sec
  • Zoom - Approx. 3.5 sec
• Preset Potentiometer - -
• Operating Temperature -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ54.0mm
• Rear - φ9.2mm
• Back Focal Length - 14.4mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M62 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W70mm x H81mm x D123.5mm
• Weight - 635g

H10Z1218M Specification PDF
