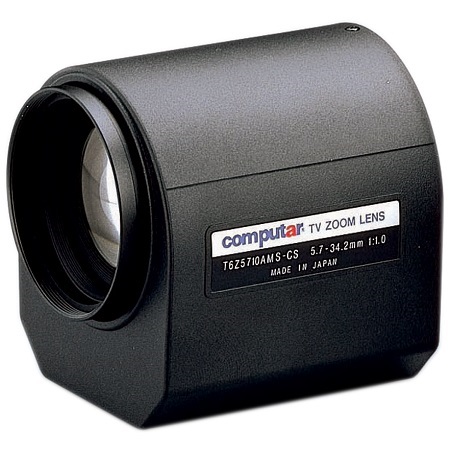

T6Z5710AMS Computar 1/3" CS-Mount 5.7-34.2mm Motorized Zoom F/1.0 Video Auto Iris Lens

Specifications

• Model No - T6Z5710AMS
• Focal Length - 5.7mm - 34.2mm
• Max. Aperture Ratio - 1:1.0
• Max. Aperture Ratio - 4.8mm x 3.6mm(φ6mm)
• Operation Range
  • Iris - F1.0 - F360C
  • Focus - 1.2m - Inf.
  • Zoom - 5.7mm - 34.2mm
• Control
  • IrisDC Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D.
  • 5.7mm - 101.6cm x 75.2cm
  • 34.2mm - 17cm x 13cm
• Angle of View
  • 1/3 type
    • D - 56.5° - 10.0°
    • H - 45.9° - 8.1°
    • V -  34.8° - 6.2°
  • 1/4 type
    • D - 43.2° - 7.8°
    • H - 34.8° - 6.2°
    • V - 26.2° - 4.8°
• Supply Voltage - Iris - DC8.5V - DC16V, Focus - DC8V, Zoom - DC8V
• Current - Iris - 40mA or less, Focus - 20mA or less, Zoom -  20mA or less
• Response Time - Iris - Approx. 2 sec. , Focus - Approx. 3 sec., Zoom -  Approx. 3.5 sec.
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Remote Control - Level Remote (Option)
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - + 15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature - -10°C - +50° C
• Effective Lens Aperture
  • Front - φ41.0mm
  • Rear - φ10.2mm
• Back Focal Length - 8.5mm
• Flange Back Length - 12.5mm
• Mount - CS-Mount
• Filter Size - M49 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W68.5mm x H76.3mm x D82.5mm
• Weight - 450g
