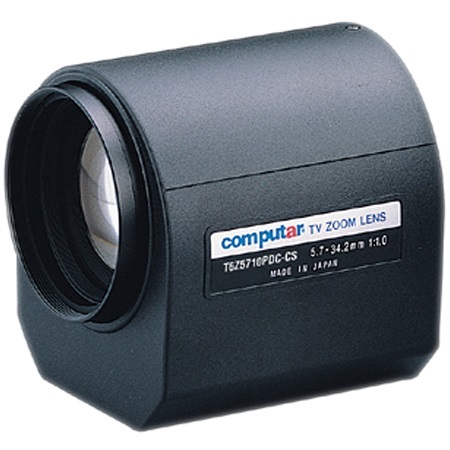

T6Z5710PDC-CS Computar 1/3" 5.7-34.2mm Motorized Remote Control F1-F360C CS Mount DC Auto Iris Lens

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - T6Z5710PDC-CS
• Focal Length - 5.7mm - 34.2mm
• Max. Aperture Ratio - 1:1.0
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.0 - F360C
• Focus - 1.2m - Inf.
• Zoom - 5.7mm - 34.2mm
• Control
• Iris - DC Auto Iris
• Focus - Motorized, Preset
• Zoom - Motorized, Preset
• Object Dimension at M.O.D.
  • 5.7mm - 101.6cm x 75.2cm
  • 34.2mm - 17cm x 13cm
• Angle of View
• 1/3 type
  • D - 56.5° - 10.0°
  • H - 45.9° - 8.1°
  • V - 34.8° - 6.2°
• 1/4 type
• D - 43.2° - 7.8°
• H - 34.8° - 6.2°
• V - 26.2° - 4.8°
• Supply Voltage - Focus - DC8V, Zoom - DC8V
• Current - Focus - 25mA or less, Zoom - 25mA or less
• Response Time - Focus - Approx. 3.5 sec, Zoom - Approx. 4 sec
• Preset Potentiometer - Focus - 5kΩVR , Zoom - 5kΩVR
• Coil
  • Drive - 190 Ω
  • Control - 1000 Ω
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ41.0mm
• Rear - φ10.2mm
• Back Focal Length - 8.5mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - M49 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W68.5mm x H76.3mm x D82.5mm
• Weight - 480g

T6Z5710PDC-CS Specification PDF
