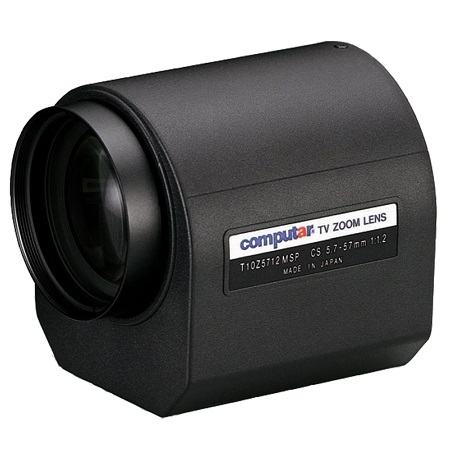

T10Z5712MSP-CS Computar 1/3" CS-Mount 5.7-57mm Motorized Zoom F/1.2 3 Motors

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - T10Z5712MSP-CS
• Focal Length - 5.7mm - 57mm
• Max. Aperture Ratio - 1:1.2
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.2 ‐ F560C
• Focus - 1.8m ‐ Inf.
• Zoom - 5.7mm -57mm
• Control
• Iris - Motorized
• Focus - Motorized, Preset
• Zoom - Motorized, Preset
• Object Dimension at M.O.D.
  • 5.7mm - 147.6cm x 110.8cm
  • 57mm - 15.1cm x11.6cm
• Angle of View
• 1/3 type
  • D - 54.2° - 5.9°
  • H - 44.6° - 4.8°
  • V - 34.2° - 3.7°
• 1/4 type
• D - 42.0° - 4.5°
• H - 34.2° - 3.7°
• V - 25.9° - 2.7°
• Supply Voltage
  • Iris - DC8V
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Iris - 25mA or less
  • Focus - 25mA or less
  • Zoom - 25mA or less
• Response Time
  • Iris - Approx. 2 sec
  • Focus - Approx. 3.5 sec
  • Zoom - Approx. 4 sec
• Preset Potentiometer
  • Iris - -
  • Focus - 5kΩVR
  • Zoom - 5kΩVR
• Operating Temperature -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ45.0mm
• Rear - φ8.6mm
• Back Focal Length - 8.5mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - M49 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W68.5mm x H76.3mm x D88mm
• Weight - 490g

T10Z5712MSP Spec Sheet
