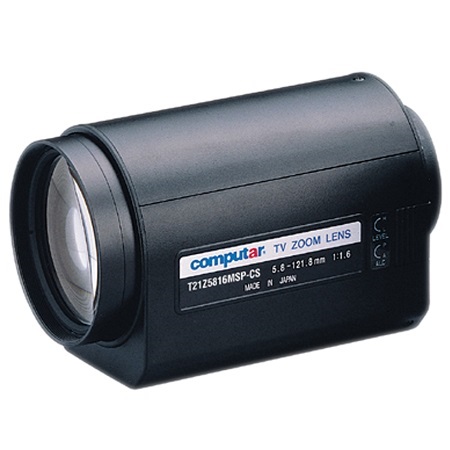

T21Z5816MSP-CS Computar 1/3" CS-Mount 5.8-121mm Motorized Zoom F/1.8 3 Motors

Specifications

• Model No - T21Z5816MSP-CS
• Focal Length - 5.8mm - 121.8mm
• Max. Aperture Ratio - 1:1.6
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.6 - F560C
• Focus - 1.5m - Inf.
• Zoom - 5.8mm - 121.8mm
• Control
• Iris - Motorized
• Focus - Motorized, Preset
• Zoom - Motorized, Preset
• Object Dimension at M.O.D.
  • 5.8mm - 123.7cm x 91.1cm
  • 121.8mm - 6cm x 4.7cm
• Angle of View
• 1/3 type
  • D - 55.5° - 2.9°
  • H - 44.8° - 2.3°
  • V - 33.8° - 1.8°
• 1/4 type
• D - 42.0° - 2.2°
• H - 33.8° - 1.8°
• V - 25.3° - 1.3°
• Supply Voltage - Iris - DC8V, Focus - DC8V, Zoom - DC8V
• Current - Iris - 20mA or less, Focus - 40mA or less, Zoom - 35mA or less
• Response Time - Iris - Approx. 2.5 sec, Focus - Approx. 4.5 sec, Zoom - Approx. 3.5 sec
• Preset Potentiometer - Focus - 5kΩVR, Zoom - 5kΩVR
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ53.2mm
• Rear - φ10.6mm
• Back Focal Length - 13.6mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - M62 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - WW70mm x H81mm x D126.5mm
• Weight - 700g
