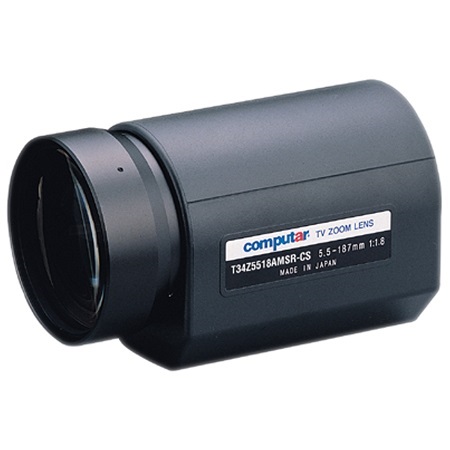

T34Z5518AMSR-CS Computar 1/3" CS-Mount 5.5-187mm Motorized Zoom F/1.8 Video Auto Iris Lens

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - T34Z5518AMSR-CS
• Focal Length - 5.5mm - 187mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 4.8mm x 3.6mm(Φ6mm)
• Operation Range
• Iris - F1.8 - F560C
• Focus - 1.5m - Inf.
• Zoom - 5.5mm - 187mm
• Control
• Iris - Video Auto Iris / Over-ride Manual
• Focus - Motorized
• Zoom - Motorized
• Object Dimension at M.O.D.
• 5.5mm - 129.2cm x 95.2cm
• 187mm - 4.1cm x 3.1cm
• Angle of View
• 1/3 type
• D - 57.5° - 1.92°
• H - 46.6° - 1.55°
• V - 35.2° - 1.17°
• Iris
• Supply Voltage - DC8.5V -DC16V
• Current - 50mA or less
• Response Time - Approx. 2 sec.
• Preset Potentiometer - -
• Light Weighting Method - Adjustable between Average - Peak (to be Set at Average at Factory)
• Remote Control - Level Remote (Option)/Over-ride Manual
• Input Signal - Video Signal (V. or V.S.)
• Iris Accurancy - ±15% at Video Signal Level
• Sensitivity Adjustment - 0.5V(p-p) - 1.0V(p-p) (Video Signal)
• Input Impedance - High Impedance
• Operating Temperature - -10°C - 50°C
• Effective Lens Aperture
• Front - Φ70.0mm
• Rear - Φ9.1mm
• Back Focal Length - 12.7mm
• Flange Back Length - 12.5mm
• Mount - CS-Mount
• Filter Size - M77 P-0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W82mm x H97.4mm x D160mm
• Weight - 1150g

T34Z5518AMSR-CS Specification PDF
