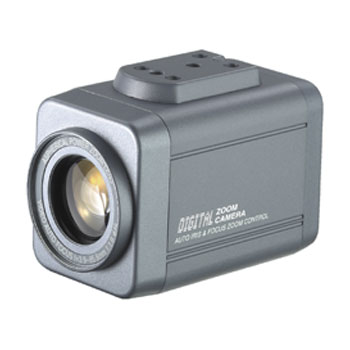

LVC-C310HM Ganz Hi-Res Color True Day/Night Camera w/ 27X AF Zoom

Model LVC-C310HM is an all purpose camera for industrial or surveillance applications. A Day/Night feature provides high resolution color images during the day and high sensitivity B/W images at night. All camera functions can be controlled by push buttons on the back panel. In addition, zoom and focus can be controlled remotely through a standard controller.

Specifications:

• Model Number - LVC-C310HM
• Image Device - 1/4 " interline transfer CCD. NTSC, High resolution: 410K.
• Sync system - Internal sync
• Horizontal Resolution - 480 Lines
• Lens Focal Length - 27x Optical Zoom (3.25 - 88mm)
• Lens F-Stop - F1.5(W) - 3.8(T) Auto Iris
• Digital Zoom - 10x Digital Zoom
• Minimum Illumination - 1 Lux (30 IRE), 0.1 Lux Night Mode
• S/N - More than 48dB (AGC OFF)
• Scanning System - 2:1 Interlace
• Power Requirement - DC 12V
• Video Output - BNC-type, S-Video-type 1.0Vp-p 75ohms
• Power Consumption - 5.3 watts
• Operating Humidity - 0% to 60%
• Operating Temperature - -5°C to +55°C
• Dimensions - 57mm(W) x 62.4mm(H) x 98.5mm(D)

LVC-C310HM Spec Sheet
