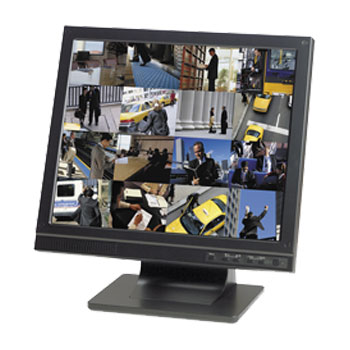

ZM-L19A Ganz 19" LCD Monitor High Brightness

Models ZM-L17A and ZM-L19A color LCD displays feature an active matrix LCD screen with outstanding resolution, contrast, and brightness. These units provide both VGA and composite video inputs for use with a PC or analog CCTV camera. A slim, lightweight design and optional wall and rack mount accessories make these monitors the ideal choice for a wide variety of security and public display applications.

Specifications:

• Model Number - ZM-L19A
• LCD DISPLAY - 19" active matrix TFT LCD panel
• PIXEL PITCH - 0.294(H) x 0.294(V)
• MAX. RESOLUTION - 1280(H) x 1024(V) SXGA (500TVL)
• SCAN FREQUENCY H/V - 31.5KHz~80KHz / 56~75Hz
• CONTRAST - 550:1
• BRIGHTNESS - 400cd/m2 (Typ.)
• RESPONSE TIME TR/TF - 5.6/2.4ms
• DISPLAY COLOR - 16.2M
• VIEWING ANGLE L/R - 70°(H) / 70°(V)
• VIEWING ANGLE UP/DOWN - 75°/ 60°
• LAMP LIFETIME - 50,000hrs
• DISPLAY MODE - VGA, Video & S-Video
• SIGNAL CONNECTOR - Video 1.0 Vp-p 75Ω BNC In /BNC Out, S-Video In /S-Video Out, Audio In/Out, VGA 15 pin D-Sub In, DVI In (optional)
• FRONT CONTROL PANEL BUTTONS - Power On/Off, Mode/Auto, Up /(Contrast Adjust), Down (Brightness Adjust), Menu
• OSD MENU VGA/Video - Brightness, Contrast, H-Position, V-Position, Clock, Phase, Color Temp, User Color R, User Color G, User Color B, OSD H-Pos, OSD V-Pos, Volume, Language, Recall / Color, Tint (NTSC Only), Brightness, Contrast, Sharpness, Volume, Language, Color Temp, Recall
• DE-INTERLACE - Yes
• 3D COMB FILTER - NTSC/PAL
• AUDIO SPEAKER - 1W (Max)
• POWER INPUT - DC Input: 12V/4.0A, 50/60Hz
• POWER CONSUMPTION - 40W (Max)
• POWER FAILURE AUTO RECOVERY - Yes
• POWER MANAGEMENT - VESA DPMS compatible
• OPERATING CONDITIONS - Temperature: 0°C ~ 40°C. Humidity: 20% ~ 85%.
• STORAGE CONDITIONS - Temperature: -20°C ~ 60°C. Humidity: 20% ~ 85%.
• DIMENSIONS - 424(W) x 419(H) x 170(D)mm
• WEIGHT - N.W.: 6.1 kgs, G.W.: 8.4kgs
• OPTIONAL RACK MOUNTING BRACKET - ERK-19

ZM-L19A Spec Sheet
