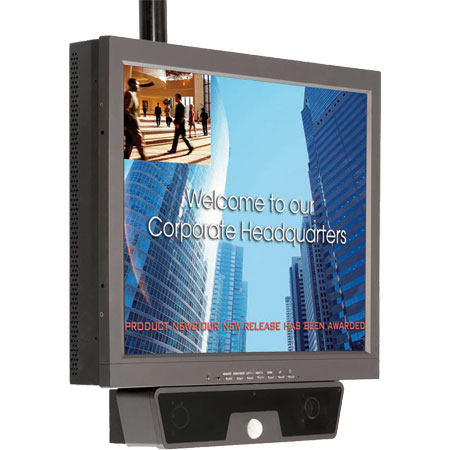

ZM-L20PD-H39 Ganz 20" Public Display System For Advertising & Security w/ Hi-Res Color Camera & 3-9mm Lens

This 20" public display monitor combines a marketing device with a CCTV surveillance system. Designed for use at locations with the need for a multi-functional security solution, it can be easily programmed to display a company logo, video message or camera view. The unit combines a LCD display, passive IR sensor, media input, flexible software, and a high resolution color camera, all with a single-cable installation. The monitor can be programmed to alert customers that video surveillance is in use when the unit's PIR detects motion or to display customized text and multi-media images.

Specifications:

• Model Number - ZM-L20PD-H39
• Panel Size - 20.1" LCD
• Resolution - 800 x 600
• Pixel Pitch - 0.51 x 0.51
• Contrast Ratio - 600 : 1
• Brightness - 400 cd/m2
• Display Ratio - 4:3
• View Angle - L/R : 80/80 , U/D: 80/60
• Response Time - Tr+Tf=16 ms
• Video Signal - Composite signal 0.7~1.4Vp-p/ 75 ohm, Y:1Vpp, C:0.3Vpp
• Video Mode - NTSC/PAL Auto Scanning
• Scan Frequency - H:30~46.9KHz, V:56~75Hz
• Front Panel Controls - Menu/Exit, Source/Enter, LEFT/-, RIGHT/+, DOWN, UP, Power Switch
• Indicators - LED (Power On: Green → LCD Control Mode; Orange → Card Reader Control Mode, Red → Standby) On-Screen (No Signal, Video Loss, Source)
• OSD Control - PVM (Settings, Scrolling); Window (PIP Adjustments, Screen Layout, Image Size, Scan Mode, H Position, V Position, Auto, Freeze Frame) ; Option (Language, Factory Reset, Input Select Timer, OSD Timeout, Keypad Locked, Backlight, Auto Power Saving, Source/Input Enable, Auto Moving); Picture (Brightness, Contrast, Phase, Frequency, Sharpness, Color, Tint, Advanced-Color Temp /Gamma Mode); Audio (Volume, Treble, Bass, Mute); Memory
• OSD Language - Dutch, English, French, German, Hungarian, Italian, Polish, Portuguese, Chinese-Simplified, Spanish, Chinese-Traditional (11)
• POP & PIP - POP & PIP (Picture movable, size-adjustable, and exchangeable.) / 1:1
• Power Failure Auto - Auto Detection from AV1, AV2, AV3, SV to PC and Auto Power On
• Source Lock - Yes
• Glass Frame - Yes
• Audio Speaker - 5W x 2
• Looping 75 ohm - Yes
• VESA Spec. - 100 x100 mm
• Frame Material - Plastic
• Back Material - Metal
• Base Material - Plastic
• Power - AC 100~240V, 50/60Hz ; DC 12V/6.5A
• Input Connector - D-Sub x 1 Video Input (BNC) x 3 Video Input (S-Video) x 1 Audio Input (S-Video) x 2 (L+R,1 sets) Audio Input (RCA) x 6 (L+R,3 sets) Audio Input (PC Audio,Ø 3.5 mm Jack) x 1 PIR Trigger Signal Input (Ø 3.5 mm Jack) x 1 Power Input (AC) x 1 Power Input (DC 12V/6.5A) x 1
• Output Connector - Video Looping Out (BNC) x 3. Audio Looping Out (RCA) x 6 (L+R,3 set) PIR Control Signal Output (Ø 3.5 mm Jack) x 1. Power Output(DC 12V/1A) x 1.
• Alarm Duration - 2 - 30 sec (with VR Adjustable)
• Sensitivity Adjustment - Yes (with VR Adjustable)
• Transmission Distance - 0 - 4 m
• OSD Control - Photo Setup, Music Setup, Movie Setup, Slideshow Setup, System Setting, Exit
• OSD Language - English, Chinese-Traditional, French, German (4)
• Power Failure Auto - Yes
• Storage Medium - CF Card / SD Card
• Type - 1/4" Color Hi-Resolution Board
• Resolution - 480 TV Line
• Quantity - 1 (Model CMH112-V39A) Optional 2nd Set
• Lens - 3-9mm Auto Iris Varifocal Lens
• Camera Window Material - Plastic
• Case Material - Plastic
• Case Back Material - Metal
• Camera Case Material - Metal
• Power - DC 12V/1A
• Input Connector - PIR Control Signal Input (Ø 3.5 mm Jack) x 1 Power Input (DC 12V/1A) x 1. Video Output (RCA) x 3. Audio Output (RCA) x 2 (L+R,1 sets). PIR Trigger Signal Output(Ø 3.5 mm Jack) x 1.
• Output Connector - Video Output (RCA) x 3. Audio Output (RCA) x 2 (L+R,1 sets). PIR Trigger Signal Output(Ø 3.5 mm Jack) x 1.
• Power Consumption - 75W (Max.)
• Unit Dimension(W*H*D mm) - Monitor: 18.2"(W) x 14.6"(H) x 2.8(D) (not including Desk Stand) Camera/Media Module: 12.9"(W) x 2.8"(H) x 3.9"(D)
• Net Weight (Kg) - Monitor: 17.6 lbs / Camera/Media Module: 1.9 lbs; Total: 19.5 lbs
• Color - Black
