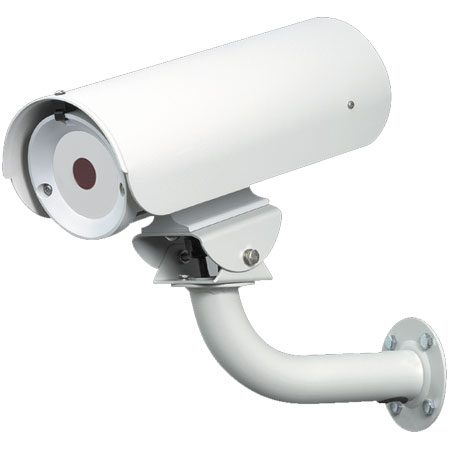

HWB-TL8 Ganz Outdoor 320x240 Resolution 8-14 Micron 8mm Lens 50 Deg HFOV

SKU: HWB-TL8
Brand: Ganz

Specifications:

  • Detector - Uncooled Microbolometer
  • Wavelength - 8 ~14 μm
  • Array Format (H x V) - 320 x 240 Pixels
  • Pixel Size (H x V) - 23.5μm x 23.5μm
  • NETD - < 75mk (L Range °F/1° 60Hz)
  • Dynamic Range - L Range : 150° (Typ. F/1). H Range : 540° (Typ. F/1).
  • Video Output - NTSC
  • Digital Output - ITU-R.BT656 Video Data or RAW Data
  • Serial Interface - RS-232C
  • Input Voltage - 24VAC
  • Power Consumption - < 5w (25°C)
  • Size (without bracket) - 3.8" (Dia) x 10.9" (L)
  • Functions - Contrast : Auto or Manual. Brightness : Auto or Manual. Polarity : White-Hot or Black-Hot. Digital Zoom : x2 or x4. FPN Correction (NUC) : Auto or Manual. Dynamic Range Select (L/H/Auto). Control : RS-232C
  • Lens - 8.2mm (50° HFOV standard)

More details...
MPN: HWB-TL8
MSRP Price: $13,624.00
Price: $13,624.00
Add to List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

CBC (AMERICA) Corp. introduces a compact thermal imaging camera offering high contrast, real-time thermal video at an affordable price. Using a microbolometer detector with a germanium lens, the video image is displayed from an interpolated heat signature emitted from people, vehicles, structures, electrical and mechanical components, etc. Ideal applications include perimeter surveillance, search and rescue, marine and port security, border patrol, electrical inspection, moisture detection and energy conservation.

HWB-TL8 Spec Sheet
