AVN-STORAGEPRO-24 Avanti Direct Connect 3U Rack Mount Storage System

SKU: AVN-STORAGEPRO-24
Brand: Avanti Servers

The Avanti Direct Connect Storage System is a Hot-swappable 3U Rackmount server that adds direct attached Storage to any PC-based DVR or NVR. As a dedicated storage server directly connected, this product adds up to 24 TB of Storage, depending on RAID configuration, for long term recording or archiving.

Product Includes:

  • Heavy Duty 3U Rack Mount System
  • Twelve hot-swappable drive bays with trays
  • 12 x 2 TeraByte SATA Drives
  • 4-port Infiniband PCI/PCI-X controller
  • Supports RAID 0, 1, 5, 10, 50 and JBOD
More details...
MPN: AVN-STORAGEPRO-24
MSRP Price: $8,600.00
Online Price: $8,600.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Specifications

  • Standard: 3U 19" Rackmount EIA RS-310D
  • Materials: Heavy duty 1.2mm cold-rolled steel, texture power coated
  • Drive Bay: 12 x 3.5" hot-swap SATA II external drive bays
  • Cooling: Rear 3 x 90mm
  • Front Control: Alarm reset, fan alarm LED, temperature alarm LED
  • Indicators: HDD LEDs for power, activity
  • Backplane: Twelve SATA II channels with 2 x SiI3726 port multipliers (5-5-1-1), 4-channel SATA II input
  • Rear Control: Power on/off switch
  • Capacity: 12 x 2TB
  • RAID Controllers: HB-4618F Silicon Image SiI3124 PCI/PCI-X infiniband host controller
  • Power Supply Support: ATX power, 360W, 110V or 240V AC, 50/60Hz
  • Humidity: 5%~95%(non condensing)
  • Temperature: 0°C (32°F)~50°C (122°F)
  • Dimensions (W x D x H): 483mm x 470mm x 175mm, 19" x 18.5" x 6.89"
  • Packaging (W x D x H): 711mm x 609mm x 258mm, 28" x 24" x 11"
  • Gross Weight: 19.5KG, 42LB (Without HDDs)

AVN-STORAGEPRO-24 Specifications PDF

Related Items You May Need or Should Consider:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.

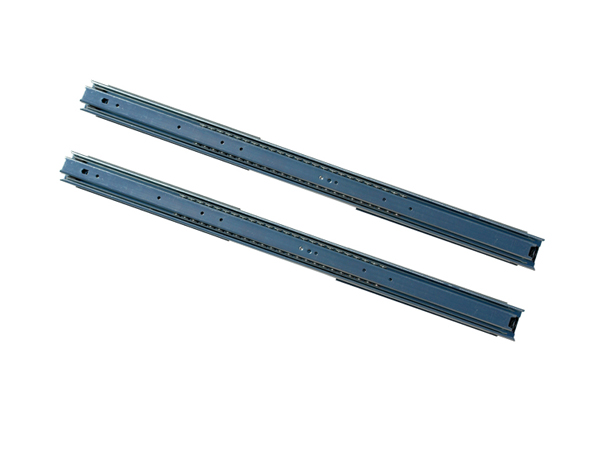

RL-26 20" Sliding rails for RPC-9xx, ESC-xxxx Chassis

RL-26 20" Sliding rails for RPC-9xx, ESC-xxxx Chassis

MSRP Price: $116.00
