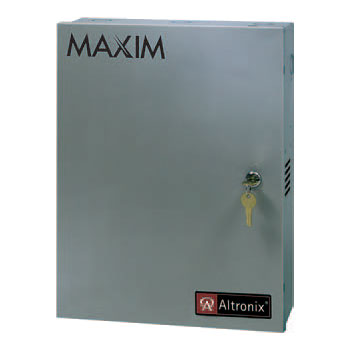

MAXIM55-DISCONTINUED Altronix Access Power Controller 16 Fuse Protected Outputs


  • 12VDC output.
  • 9.5 amp @ 12VDC plus 9.5 amp @ 12VDC.
  • 115VAC 60Hz, 6.0 amp input.
  • Input fuse rated @ 3.5 amp.
  • Filtered and electronically regulated outputs.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Maximum charge current .7 amp.
  • Automatic switch over to stand-by battery when AC fails.
  • Zero voltage drop when unit switches over to battery backup (AC failure condition).
  • Short circuit and thermal onerload protection with auto reset.
  • AC input and DC output LED indicators.
  • AC fail supervision (form "C" contact).
  • Battery fail and battery presence supervision (form "C" contact).
  • Sixteen (16) Access Control System trigger inputs.
  • Sixteen (16) independently controlled fuse protected outputs.
  • Sixteen (16) auxiliary power outputs (unswitched) (outputs are rated 3.5 amp).
  • ACM8 board's main fuse is rated @ 10 amp.
  • Red LEDs indicate outputs are triggered (relays energized).
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the Sixteen (16) outputs.
  • Alarm output relay indicates that FACP input is triggered (form C contact rated @ 1 amp 28VDC not evaluated by UL).
  • Green LED indicates FACP disconnect is triggered.
  • Lifetime Warranty.
  • Accommodates up to four (4) 12VDC/12AH batteries.
  • Dimensions: 26H x 19W x 6.25D.
  • 1/2" and 3/4" combination knockouts.
More details...
MSRP Price: $1,192.00
Web Price: $851.00
Save to my Wish List
Product Details

This unit distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC fuse protected outputs. These power outputs can be converted to dry form C contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

MAXIM55 Spec Sheet
