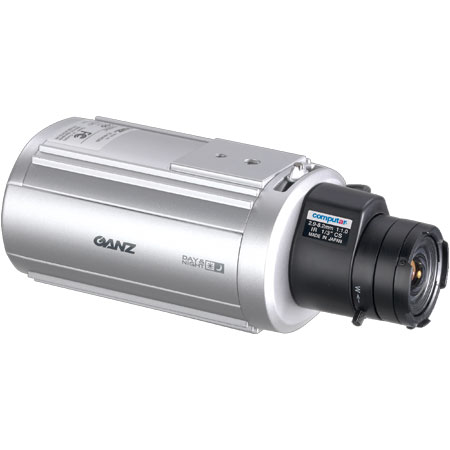

ZC-NH405N Ganz Super Hi-Res Color True Day/Night 1/3" Camera

The GANZ ZC-NH405N achieves true day and night performance by utilizing a mechanical shutter for IR cut filter removal during low light operation. Unlike "electronic" day/night cameras, removal of the IR cut filter provides significantly better sensitivity in the night mode and allows further enhancement when combined with an IR illuminator.

Specifications:

• Model Number - ZC-NH405N
• LENS MOUNT - CS Mount
• IMAGE SENSOR - 1/3" Ex-View IT CCD
• EFFECTIVE PIXELS - 768(H) x 494(V)
• SCANNING SYSTEM - 2:1 Interlace
• SCANNING FREQUENCY - 15.734hHz (H) /59.94Hz (V)
• SYNCHRONIZATION SYSTEM - Internal/Line Lock
• HORIZONTAL RESOLUTION - 540 TVL
• VIDEO OUTPUT - 1.0V (p-p) /75 ohm, Video 0.714V (p-p), Sync, 0.266V (p-p)
• S/N RATIO - More than 50dB (AGC OFF)
• MINIMUM ILLUMINANCE - 0.06 lux. (F1.2/50 IRE) ,0.03lux (F1.2/30 IRE): Night mode
• GAMMA - 0.45/1.0
• AGC - 38 dB max.
• ELECTRONIC SHUTTER - Auto or Manually Selectable (1/60-1/100,000)
• BLC - On / Off (6 selectable patterns)
• WHITE BALANCE - ATW / Manual
• COMMUNICATION - RS485 two way communication
• OPERATING TEMPERATURE - 14°F ~ 122°F/ -10°C ~ 50°C
• STORAGE TEMPERATURE - -4°F ~ 140°F/ -20°C ~ 60°C
• HUMIDITY - 80% RH Max. (No Condensation)
• POWER SUPPLY - 12 VDC / 24 VAC Auto Switching
• POWER CONSUMPTION - 4.5W
• WEIGHT - 1.0 lbs./ 450g
• EXTERNAL DIMENSIONS - 2.99" x 2.40" x 4.84" (W x H x D) 76 x 61 x 123mm (Wx H x D)
