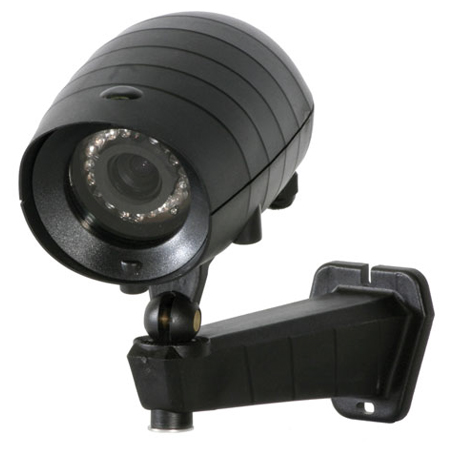

EX14MNX8V0408B-N Bosch 4-9mm Varifocal 540TVL Indoor/Outdoor IR Day/Night Bullet Security Camera 12VDC/24VAC

The EX14N is an all-environment Integrated Day-Night (IDN) camera for extreme weather applications. The simple, effective design allows performance in the most challenging of environmental conditions. The housing is compact, yet large enough for a 9 to 22 mm varifocal lens, the mechanical filter imaging technology and integrated infrared illumination for 12 m (40 ft) Night Vision.

The EX14N incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging under infrared illumination while maintaining sharp focus under all lighting conditions. The EX14N also features proprietary CCD technology for outstanding spectral response in the near infrared for excellent active-infrared night vision.

A high-efficiency 18-LED spatially optimized infrared array contributes to evenly-distributed infrared illumination. Photocell-control ensures that video and LED switching are accurate. The result is an excellent 24/7 camera, with 40 ft of Night Vision in totally dark environments.

Made of an injection-molded ABS/Nylon resin, the EX14N series is engineered specifically to withstand hot, cold and wet environments. A totally insulated inner chamber eliminates the requirement for internal heaters and blowers. Compliant to IP66, the EX14N series also features an easy-access camera compartment for easy camera/lens adjustments and installation.

Rugged, compact, power protected and extreme weather-sealed, the EX14N Series is an ideal IDN camera for extreme environments in day or dark conditions. The EX14N is available with a varifocal 4 to 9 mm auto-iris lens and comes complete with a nylon wall bracket for quick and easy installation.

Specifications

• Model - EX14MNX
• CCD - MX4 with Mechanical Filter
• Image Sensor - 1/3 in CCD
• Resolution
  • Color - 540TVL
  • Monochrome - 540TVL
• Effective Pixels
  • NTSC - 768 x 494 (HxV)
  • PAL - 752 x 582 (HxV)
• Daytime - 0.02 lux with F1.4 lens
• Night time - 0 lux with infrared (B/W)
• S/N Ratio - Greater than 48 dB (AGC off)
• Video Output - 1 Vpp, 75 ohm
• Gamma - 0.45
• Gain Control - AGC (with on/off switch)
• Electronics Iris
  • NTSC - 1/60 to 1/100,000
  • PAL - 1/50 to 1/100,000
• Voltage Supply - 12 to 24 AC/DC
• LED Type - High-efficiency 850nm, even distribution IR
• Number of LEDs - 18
• Power Consumption - 4.5 W
• Internal Heater / Cooler - Not Required
• Window - Flame resistant VO-Margard; 50 mm (2.0 in)
• Wall Bracket - Included
• Color - Black standard
• External Dimensions (LxWxH) - 180 x 85 x 85 mm, 7.1 x 3.3 x 3.3 in
• Window Diameter - 50 mm (2.0 in)
• Weight - 0.7 kg (1.5lb) bracket included
• Temperature Range Operation - -60°C to +60°C (-76°F to +140°F)
• Environmental - IP66 compliant
