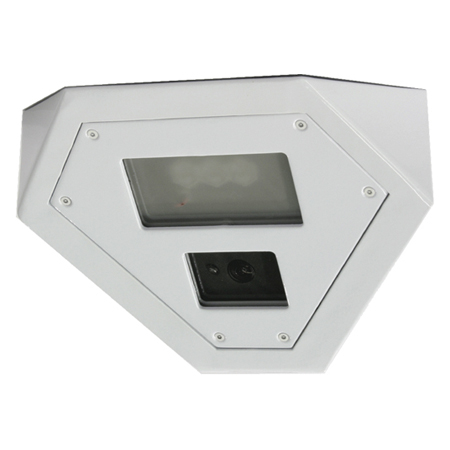

NEC-360F02-21W BOSCH 2.5mm 500TVL Indoor Color Vandal No-Grip Corner Mount IP Security Camera 12VDC/24VAC

Specifications:

• Sensor - Hi-resolution Color CCD
• Effective Pixels (NTSC) - 768(H) x 494(V)
• Effective Pixels (PAL) - 752(H) x 582(V)
• Resolution - 500 TVL
• S/N Ratio - Greater than 48dB
• Daytime Sensitivity - Greater than 48dB
• Night-time Sensitivity - 2.7 Lux at F1.4
• Lens - Fixed: 2.5 mm
• Gamma - 0.45
• Video Output - 1 Vpp, 75 ohms
• LEDs - None - No IR window
• Ethernet - 10/100 Base-T RJ45
• Analog - PAL or NTSC BNC
• Protocols - Telnet, RTP, HTTP(S), ARP,TCP, UDP, IP, ICMP, DHCP, IGMPv2/v3, SNMP, 802.1x
• Compression - H.264 MP (Main Profile); H.264 BP+ (Baseline Profile Plus); M-JPEG
• Frame Rate - 1-30 FPS programmable (full motion)
• Bandwidth - Configurable from 9.6 Kbps to 6 Mbps
• Resolution and Frame Rates
• 4CIF: 25/30 IPS
• 2CIF: 25/30 IPS
• half D1: 25/30 IPS
• CIF: 25/30 IPS
• QCIF: 25/30 IPS
• Weight - 1.2 kg (2.6 lbs)
• Construction - Robust aluminum casting, painted steel with flush removable front panel and tamper-resistant screws
• Window - ¼-inch thick LEXAN
• Overall Dimensions (W x H x D) - 224 x 134 x 155 mm (8.8 x 5.3 x 6.1 in.)
• Operational Range - -50°C to +50°C (-58°F to 122°F)
• Voltage Supply - 12 VDC / 24 VAC
• Power Consumption - 900 mA at 12 VDC max

NEC-360F02-21W Specifications PDF

NEC-360F02-21W Quick Installation Guide
