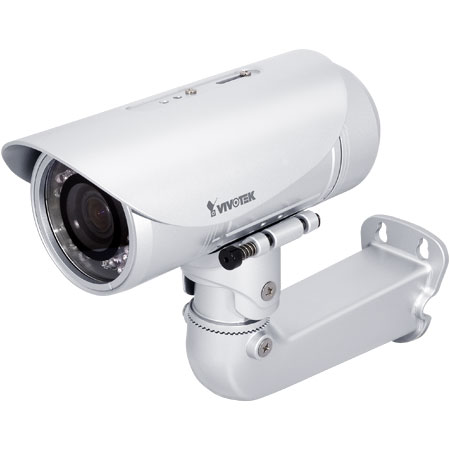

IP7361 Vivotek 3 to 9mm Varifocal 1600x1200 Outdoor IR Day/Night Bullet IP Security Camera 12VDC/24VAC/POE-DISCONTINUED

VIVOTEK IP7361 is a high-end 2-megapixel network bullet camera built for outdoor surveillance. With high resolution video and a combination of outdoor-specific features such as concealed wiring to prevent tampering, the IP7361 is the camera of choice for applications such as parking lots, gas stations, and building exteriors.

The IP7361 boasts high-definition 2-megapixel (1600 x 1200) resolution, allowing for the delivery of extremely detailed images and coverage 6 times larger than a VGA camera. To maximize the benefit of the 2-megapixel sensor, the IP7361 employs several innovative technologies for optimized bandwidth efficiency. The ePTZ function enables users to quickly move to a target area for close-up shots without moving the camera physically. Users can also receive only the portions of the images they are interested in via the cropping function. Furthermore, multiple video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. The IP7361 also offers activity adaptive streaming support that dynamically allocates bandwidth according to the video content and trigger state.

Aimed at outdoor surveillance, the IP7361 features auto-iris capability to protect the lens from damage induced by direct sunlight. To adapt to changing lighting conditions throughout the day, the camera is furnished with a removable IR-cut filter and IR illuminators for superior image quality around the clock. The IP7361 also comes with an IP67-rated housing that offers protection against rain and dust to ensure functional operation in all types of weather conditions. For easy management and protection against tempering and vandalism, the IP7361 is also equipped with a mounting bracket that conceals all cables within.

With other advanced features such as tamper detection, 802.3af compliant PoE, SD/SDHC card on-board storage, and two-way audio via SIP protocol, the IP7361 is a truly a full-fledged surveillance solution for outdoor environments.

Specifications:

• Model Number - IP7361
• System - CPU: Mozart 120 SoC. Flash: 16MB. RAM: 128MB + 128MBMB. Embedded OS: Linux 2.6.
• Lens - f = 3 - 9 mm. F 1.2 (wide). F 2.1 (tele). Auto Iris. Board lens. Vari-focal. Removable IR-cut filter for day & night function.
• Angle of View - 31.7 - 93.0 Degrees (horizontal). 23.8 - 68.4 Degrees (vertical).
• Shutter Time - 1/5 ~ 1/40,000 sec.
• Image sensor - 1/3.2" CMOS in 1600x1200 Resolution.
• IR Illuminators - Built-in IR illuminators, Effective up to 25.
• Video - Compression: MJPEG & MPEG-4. Streaming: Simultaneous multiple streams. MPEG-4 streaming over UDP, TCP, HTTP or HTTPS. MPEG-4 multicast streaming. MJPEG streaming over HTTP or HTTPS. Supports activity adaptive streaming for dynamic frame rate control. Supports video cropping for bandwidth saving. Supports ePTZ for data efficiency. Supports 3GPP mobile surveillance. Frame rates: MPEG-4: Up to up to 30 fps at 800x600, Up to up to 10 fps at 1600x1200. MJPEG: Up to up to 30 fps at 800x600, Up to up to 10 fps at 1600x1200.
• Image Settings - Adjustable image size, quality, and bit rate. Time stamp and text caption overlay. Flip & mirror. Configurable brightness, contrast, saturation, sharpness, white balance and exposure. AGC. AWB. AES. Automatic, manual or scheduled day/night mode. Supports privacy masks. BLC (Backlight compensation).
• Audio - Compression: GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps. MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps. Interface: External microphone input. Supports two-way audio via SIP protocol. General I/O. Supports audio mute.
• Networking - 10/100 Mbps Ethernet, RJ-45. Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X.
• Alarm and Event Management - Triple-window video motion detection. One D/I and one D/O for external sensor and alarm. Event notification using HTTP, SMTP, or FTP. Local recording of MP4 files. Tamper detection.
• On-board Storage - SD/SDHC card slot. Stores snapshots and video clips.
• Security - Multi-level user access with password protection. IP address filtering. HTTPS encrypted data transmission. 802.1X port-based authentication for network protection.
• Users - 10 clients on-line monitoring at the same time.
• Dimensions - Ø: 83mm x 210 mm
• Weight - Net: 1600 g
• Power - 12V DC. 24V AC. Power consumption: Max. 7 W. 802.3af compliant Power-over-Ethernet.
• Housing - Weather-proof IP67-rated housing.
• Approvals - CE. C-Tick. FCC. LVD. VCCI.
• Operating Environments - Temperature: -20 - 50 C (-4 - 122 F). Humidity: 90%.
• Viewing System Requirements - OS: Microsoft Windows 2000/XP/Vista. Browser: Mozilla Firefox, Internet Explorer 6.x or above. Cell phone: 3GPP player. Real Player: 10.5 or above. Quick Time: 6.5 or above.
• Installation, Management, and Maintenance - Installation Wizard 2. 32-CH central management software. Supports firmware upgrade.
• Applications - SDK available for application development and system integration.
• Warranty - 24 months.

IP7361 Spec Sheet
