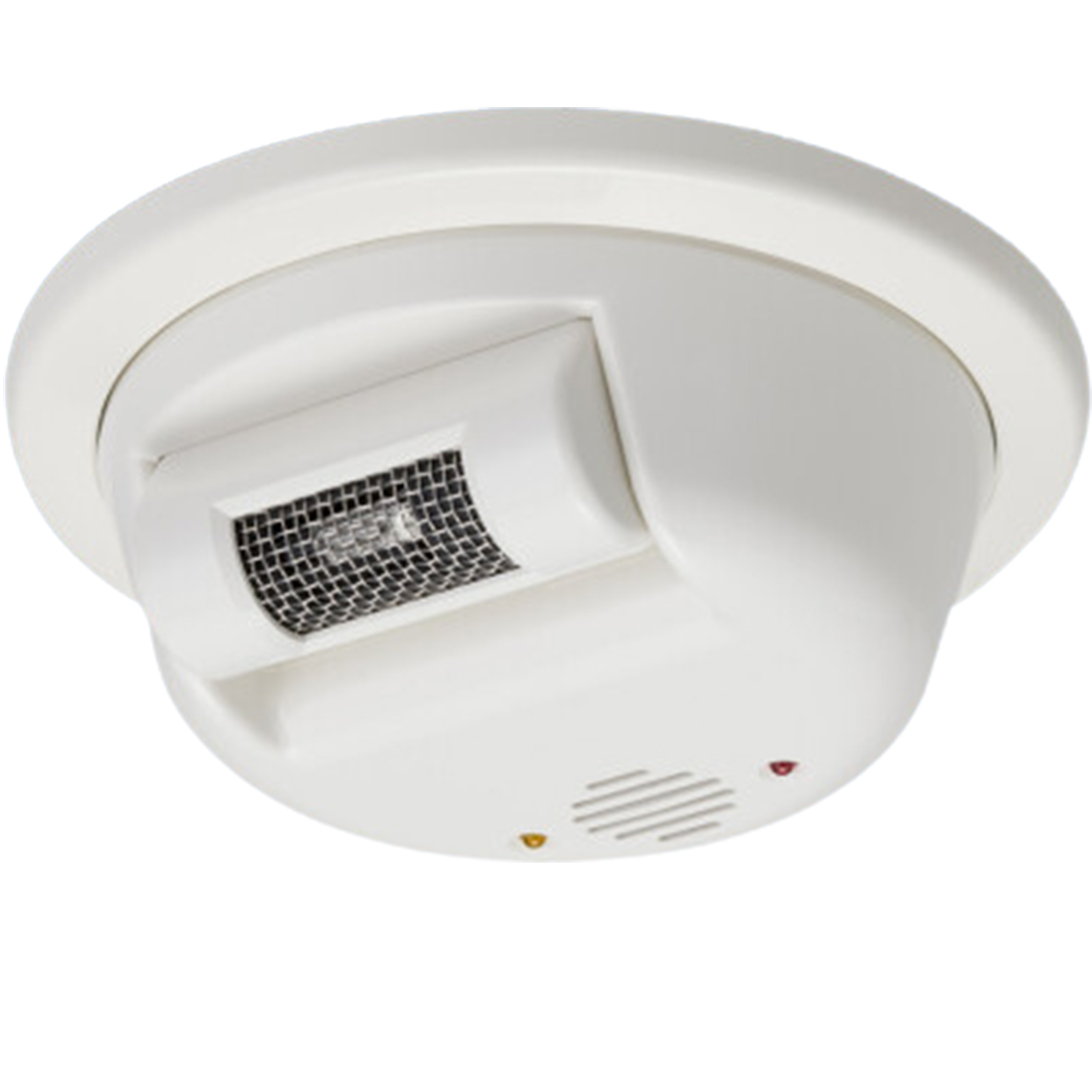

FS-2000E TAKEX Indoor Flame Sensor

FLAME DETECTION AT 33ft. (10m) AHEAD ! PROTECTION AREA ADJUSTMENT ENABLES EASY INSTALLATION , AND MANY FUNCTIONS FOR PROFESSIONALS ARE AVAILABLE !

Flame sensor FS-2000E quickly detects ultraviolet rays contained in flames and activates a built-in alarm sound in addition to an external output.

OPERATION SET-UP BY DETECTION TIMER

The alarm will be activated only when the sensor detects a flame (ultraviolet rays) in accordance with the detection timer. 4 detection times are selectable by a slide switch on the sensor. <0.2 sec., 1 sec., 6 sec., 30 sec.,>

OTHER FUNCTIONS

＊Internal alarm sound, which is greater than 80dB at 3.3ft. (1m) in front of the sensor, and it can be turned off.
＊Tamper output.

FORM C EXTERNAL OUTPUT

With a Form C output, FS-2000E can be connected to a Fire / Security control panel. Also the output signal can be used to initiate a warning device, such as CCTV surveillance as a part of advanced security system.

ALARM MEMORY

It can be easily identified by Alarm memory indication which sensor is activated. Memory LED on the sensor blinks for 3 min. and lights on for 47 min. after alarm activation.

PROTECTION AREA ADJUSTMENT

Compact design (䃥120mm) enables FS-2000E to be installed at any location. Easy separation of the sensor body from the base simplifies installation and maintenance.
In addition, wide selections of protection area setting are available with protection area adjustment.

Specifications

• Detection system - Ultraviolet rays detection
• Coverage - Distance:
  33ft.(10m) [2.75" (7cm) lighter flame, in front)
  Angle:
  Approx. 120° conically
• Area adjustment
  - Horizontal 25° by base unit
  Vertical 30° (4 steps) by sensor head
• Supply voltage - 10V to 30VDC (non-polarity)
• Current consumption - Stand by: 25mA or less
  Alarm: 75mA or less (alarm sound ON)
  40mA or less (alarm sound OFF)
• Alarm output - Dry contact relay Form C (alarm: open / close)
  Contact action: off-delay (approx. 2 sec.)
  Contact capacity: 30V(AC/DC)0.3A, protective esistance 3.3 ohms
• Alarm memory - Auto-reset operation (on/off setting available)
  Memory LED blinks for 3 min. then lights on for 47 min
• Tamper output - Dry contact relay Form B (N.C.)
  Action: open when cover is detached
  Capacity: 30V (AC/DC) 0.1A
• LED indicator - Alarm LED (red): light on for off-delay 10 sec.
  Memory LED (yellow): light on when memory indicated,
  blink when power turned on
• Buzzer - Alarm: Sounds intermittently every 0.2 sec. during off-delay 10 sec.
  Volume: 80dB or more at 3.3ft (1m) ahead (silent setting is available)
• Sensitivity adjustment - Detection timer 4 steps (0.2 sec., 1 sec., 6 sec and 30 sec.)
• Mounting position - Indoor (ceiling or wall mount)
• Wiring - Terminals
• Weight - Approx. 5.3oz (150g)
• Appearance - ABS resin (white)
• Accessory - Tapping screw Φ4×25.2pcs.
  Sensor locking screw Φ3×6.1pc.
• Ambient temperature - +14°F to +140°F (-10°C to +60°C) without condensation
