ELK-M1PCSPIM ELK UPB Interface for M1G & M1EZ8 Controls

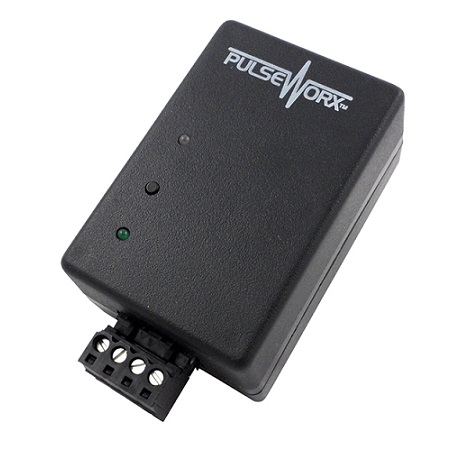

The ELK-M1PCSPIM is a special Powerline Interface Module containing a built-in M1XSP Serial Port chip. This all-in-one device makes it easy to permanently connect the ELK M1 Control to a UPB network. Simply locate a convenient unused AC Power Outlet, connect a cable from the M1 data bus to the four (4) terminals on the ELKM1 PCSPIM, and perform an M1 data bus enrollment.

Specifications

• Power
  • UPB Network circuitry – powered from the AC "Primary" Line
  • M1 Data Bus Device circuitry – powered (12VDC) from the M1 Data Bus (+) & (-) terminals
• Current Draw from M1 - ~30mA @ 12 VDC
• M1 Bus Device Address - Preset at Address #7 [Requires bus module enrollment]
• Firmware required - 1.0.42 (std. firmware) or later

ELK-M1PCSPIM Manual
