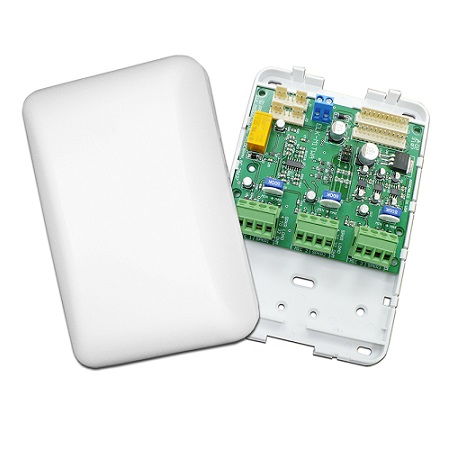

ELK-M1TWA ELK Two Way Amplifier with 3 Speakers & 3 Microphones

The ELK-M1TWA is an accessory for the ELK-M1 and ELKM1EZ8 controls. It provides 3 zones of amplified speaker outputs with adjustable volume, along with 3 zones of microphone inputs. The M1TWA can be used to add two way listen-in to the M1 Control or to just add amplified speakers at keypads and other locations in a building.

Specifications

• Output Impedance Range - ~4 to 32 Ohms per SPKR Output
• Multiple speakers on any single output must be parallel or serial connected to maintain rated impedance
• Amplifier Rating - 1/2 Watt per Speaker Output
• Microphone Inputs - Up to 4 Mics per input. Compatible with : ELK-M1TWM, ELK-M1TWS
• Operating Voltage - 9 to 14 Volts D.C.
• Current Draw - 15mA nominal, 1000mA (1 Amp) maximum
• Microphone Current Draw. 5mA each
• Housing Dimensions - 4.25" x 6.375" x 2.125"
• Circuit Board Dimensions - 2.25" x 3.95"
