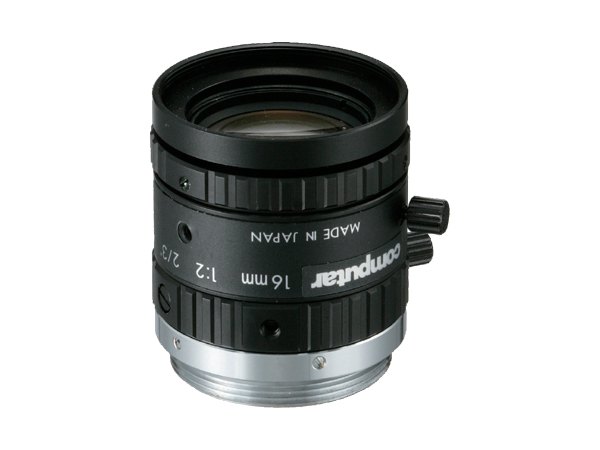

M1620-MPV Computar 2/3" 16mm f2.0 3 Megapixel Ultra low Distortion Lens

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Specifications

• Model No - M1620-MPV
• Focal Length - 16mm
• Max. Aperture Ratio - 1:2.0
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
• Iris - F2.0 ‐ F16.0
• Focus - 0.2m ‐ Inf.
• Control
• Iris - Manual
• Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 8.8cm x 11.74cm
  • 1/1.8 Type - 6.93cm x 9.20cm
  • 1/2 Type - 6.40cm x 8.53cm
• Angle of View
• 2/3 type
  • D - 37.7°
  • H - 30.7°
  • V - 23.3°
• 1/1.8 type
• D - 30.1°
• H - 24.3°
• V - 18.5°
• 1/2 Type
• D - 28.0°
• H - 22.6°
• V - 17.1°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ18.0mm
• Rear - φ11.0mm
• Back Focal Length - 14.7mm
• Distortion
  • 2/3 type - 0.09%(y=5.5)
  • 1/1.8 type - -0.06%(y=4.32)
  • 1/2 type - -0.07%(y=4.0)
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 33.53mm
• Weight - 53.0g
