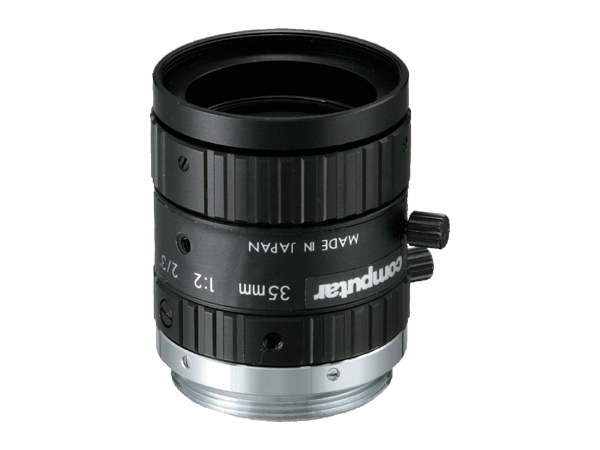

M3520-MPV Computar 2/3" 35mm F2.0 3 Megapixel Ultra Low Distortion Lens

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Specifications

• Model No - M3520-MPV
• Focal Length - 35mm
• Max. Aperture Ratio - 1:2.0
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
• Iris - F2.0 ‐ F22.0
• Focus - 0.2m ‐ Inf.
• Control
• Iris - Manual
• Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 3.48cm x 4.63cm
  • 1/1.8 Type - 2.74cm x 3.63cm
  • 1/2 Type - 2.53cm x 3.37cm
• Angle of View
• 2/3 type
  • D - 17.8°
  • H - 14.3°
  • V - 10.7°
• 1/1.8 type
• D - 14.0°
• H - 11.2°
• V - 8.5°
• 1/2 type
• D - 13.0°
• H - 10.4°
• V - 7.8°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ18.0mm
• Rear - φ12.0mm
• Distortion
  • 2/3 type - 0.011%(y=5.5)
  • 1/1.8 type - 0.010%(y=4.32)
  • 1/2 type - 0.009%(y=4.0)
• Back Focal Length - 18.0mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 37.34mm
• Weight - 59.0g
