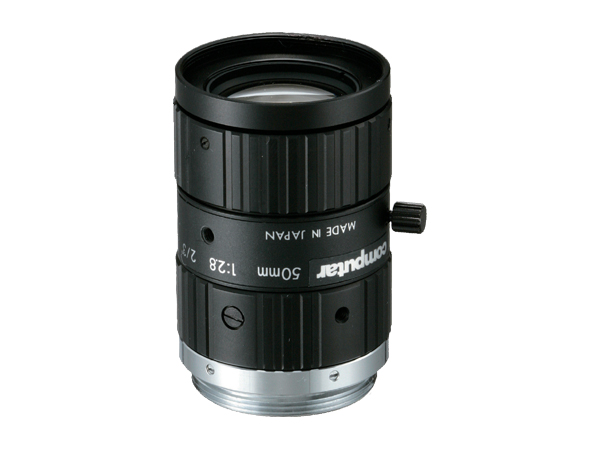

M5028-MPV Computar 2/3" 50mm F2.8 3 Megapixel Ultra Low Distortion Lens

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Specifications

• Model No - M5028-MPV
• Focal Length - 50mm
• Max. Aperture Ratio - 1:2.8
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
• Iris - F2.8 ‐ F32.0
• Focus - 0.4m ‐ Inf.
• Control
• Iris - Manual
• Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 2.15cm x 2.86cm
  • 1/1.8 Type - 1.69cm x 2.24cm
  • 1/2 Type - 1.56cm x 2.08cm
• Angle of View
• 2/3 type
  • D - 12.5°
  • H - 10.0°
  • V - 7.5°
• 1/1.8 type
• D - 9.9°
• H - 7.9°
• V - 5.9°
• 1/2 type
• D - 9.1°
• H - 7.3°
• V - 5.5°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ18.0mm
• Rear - φ12.0mm
• Distortion
  • 2/3 type - 0.027%(y=5.5)
  • 1/1.8 type - 0.017%(y=4.32)
  • 1/2 type - 0.015%(y=4.0)
• Back Focal Length - 27.7mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 45.36mm
• Weight - 69.0g

M5028-MPV Specifications PDF
