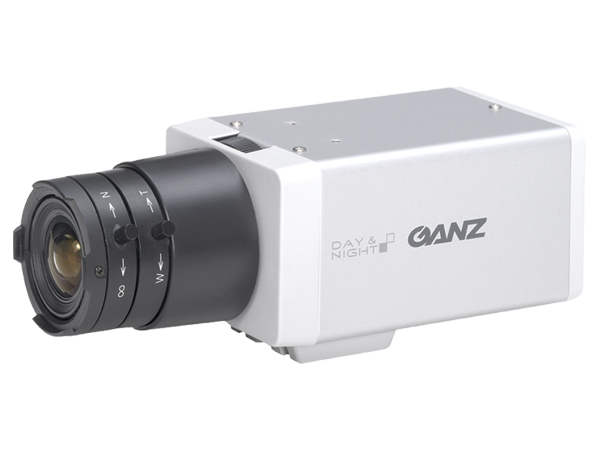

ZC-NH258Nm Ganz 1/3" Interline Transfer CCD 540TVL Dual Voltage Day/Night Mist Image Camera

CBC's THRU Vision Series cameras are engineered to sharpen and increase visibility in conditions where fog, haze, smog, sand or rain impede outdoor video surveillance. The real-time "MIST" technology focuses through obstacles present in the atmosphere that can obstruct or deteriorate video image quality. The camera's Dynamic Range Control (DRC) function detects and measures image intensity on the screen. By digitally adjusting color and contrast, poor quality images caused by environmental factors are automatically corrected. Ideal applications include mission-critical perimeter surveillance, port, harbor and airport security applications.

Specifications:

• Video Signal System: NTSC
• Image sensor / Effective Pixels: 1/3"-Type Interline transfer CCD / 768 (H) x 494 (V)
• Video output / Scanning System: 1.0V p-p, 75Ω / 2:1 interlace
• Resolution: 540 TVL
• Minimum Illumination at F1.2:
• 50 IRE: 0.03 lux (Night mode, B/W) (D/DN: ON)
• 30 IRE: 0.015 lux (Night mode, B/W) / 0.00 lux with IR
• SN Ratio: More than 50 dB (at minimum AGC gain)
• Iris Control: DC / AES / Video
• Power: AC 24V ± 10%, 60 ± 1Hz, DC 12V ± 10%
• Power Consumption: DC 12V - 4.5W / AC 24V - 4.5W / 330 mA
• Lens Mount: CS Mount (C Mount with optional 5mm adapter)
• Operating Environment: 14°F ~ 122°F / -10°C ~ +50°C, 85% RH or less (no condensation)
• External Dimensions: (W x H x D) 2.4" x 2.1" x 4" / 60mm x 54mm x 103mm
• Weight: 0.6 lbs. (250g)
• Switches:
• Mist: ON/OFF, AUTO/STD, HI/STD
• DRC: HI / STD
• Iris: DC / AES / VIDEO
• BLC: BLC ON / OFF
• Adjustments: DC Iris level adjustment

ZC-NH258Nm Spec Sheet
