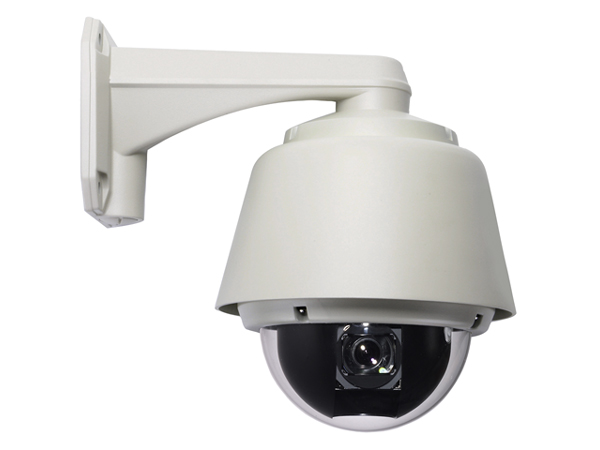

PT127N-XT Ganz 1/4" Super HAD CCD 550TVL 3.5~94.5mm True Day/Night Vandal-Resistant 27X PTZ Dome

Specifications:

• Video Signal Format: NTSC
• Image Sensor: 1/4' Super HAD Color CCD
• Horizontal Resolution/ Pixels: 550 TVL Color / 680 TVL B/W (768 x 494)
• Video Signal-to-Noise: 50 dB (AGC Off)
• Zoom Range: 27x Optical Zoom, 12x Digital Zoom
• F-Stop / Focal Length: F1.6 ~ 2.9 / f = 3.5 ~ 94.5mm
• Angle of View: H : 55.5° (Wide) ~ 2.24° (Tele) / V : 42.5° (Wide ) ~ 1.79° (Tele)
• Zoom Speed: 1.8 sec (Wide to Tele)
• Minimum Illuminance: 0.4 Lux (Color) / 0. 02 Lux (B/W), 50 IRE / F1.6
• Day & Night Settings: Auto / Day / Night (ICR)
• Focus Settings: Auto / Manual / Semi-Auto
• Iris Settings: Auto / Manual
• Shutter Speed: 1/256 ~ 1/120000 sec
• AGC Settings: Low / Middle / High / Manual / Off
• White Balance: Auto / Manual (Red, Blue Gain Adjustable. 1800°K~10500°K)
• BLC: BLC / HLC / Off
• SSNR: Low / Middle / High / Off
• Privacy Zone: 8 Masks, Spherical Coordinate
• Stabilization: ON / OFF
• Pan: 360° (Endless)
• Tilt: 90°
• Speed:
• Preset: 360°/sec.
• Jog: 0.05 ~ 360°/sec. (Proportional to Zoom)
• Swing: 1~ 180°/sec.
• Presets: 127 Presets (Label, Independent Camera Parameter Setting)
• Patterns: 4 Patterns [1200 Commands (Approx. 5 Minute) / Pattern]
• Swings: 8 Swings
• Groups: 8 Groups (Max. 20 Actions with the combination of Preset, Pattern and Swing)
• Other Pan/Tilt Functions: Auto Flip, Auto Parking, Power Up Action
• Protocol Options: Pelco-D, Pelco-P Selectable
• Communication: RS-485
• OSD: English, Menu / PTZ information etc
• Alarm Input: 3 Inputs
• Alarm Outputs: 1 Output, Relay Output, Max. Load DC24V 1A / ACe125V 0.5A
• Fan: Always ON
• Heater: Operation Start from Internal Temperature 50°F / 10°C
• Operation Temperature: -22°F ~ 122°F / -30°C ~ 50°C
• Rated Power: AC 24V/1.5A
• Dimensions: 7.3" Ø x 7.6" (H) / 7.8" Ø x 7.6" (H) with sunshield
• Dimensions: with Wall Mount 11.5" Ø x 11" (H)
• Weight: Approx. 8.4 lbs. / 3.8 Kg
